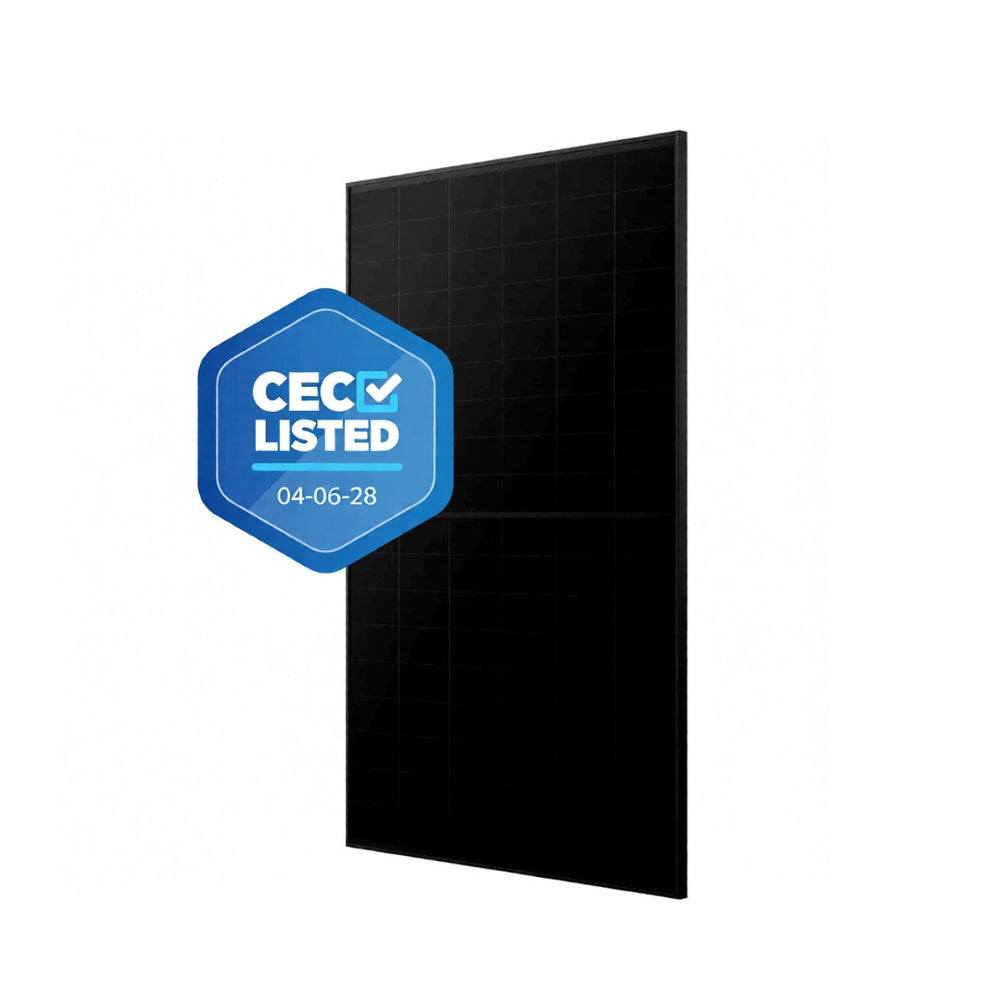

AIKO 475 Watt 108 Cell NEOSTAR 3S54 Mono-Glass 30mm All Black N-Type BC Solar Panel

The Aiko 475W Neostar 3S is a cutting-edge, all-black solar panel designed to deliver industry-leading efficiency, aesthetics, and performance. Built with 3rd-generation N-Type ABC (All Back Contact) cell technology—also known as Infinite Technology—this panel is engineered to achieve maximum energy output while maintaining a premium look for high-end residential and commercial solar projects.

Offering up to 24.8% efficiency, it's currently one of the most efficient all-black solar panels available in Australia, making it the ideal choice where performance, appearance, and long-term value matter.

 Key Specifications

• Rated Output: 475W (up to 495W real-world performance)
• Module Efficiency: Up to 24.8%
• Cell Type: N-Type ABC (All Back Contact, Infinite Tech)
• Frame: 30mm black anodised aluminium
• Appearance: Full black design – no visible busbars
• Temperature Coefficient: -0.26%/°C
• Connector Type: Staubli PV-KST4 / KBT4 EVO 2A/6I
• Size: Same dimensions as standard 475W white backsheet model
• Performance Warranty: 30 years (90.6% output after 30 years)

Highlights:

• High Power Output & Efficiency
• Capable of delivering up to 495W with up to 24.8% efficiency, the panel maximises energy production per square metre, helping to get the most from available roof space.
• Advanced N-Type Back Contact Cells
• Uses state-of-the-art back-contact cell technology that boosts efficiency, minimizes performance loss over time, and virtually eliminates light-induced degradation (LID).
• Long-Term Performance Assurance
• Backed by a 30-year linear power warranty, ensuring at least 90.6% rated output after three decades with minimal annual degradation of just 0.35% from the second year onward.
• Superior Shade Tolerance
• Equipped with three integrated bypass diodes and smart string architecture, the panel maintains strong performance even in partially shaded conditions.
• Built to Withstand Harsh Conditions
• Tested to handle extreme environmental loads, including 5400Pa front load, 2400Pa rear load, and hail impact (40mm at 27.5 m/s).
• Refined Visual Design
• Features a modern, all-black anodised aluminium frame and a slim 30mm profile for a clean, high-end look on rooftops.
• Excellent Heat Performance
• A low temperature coefficient of -0.26%/°C ensures steady power output even in hot climates.
• Reliable & Fast Connections
• Integrated with high-quality Staubli PV-KST4/KBT4 EVO 2A/6I connectors for safe, efficient installation.
