Description

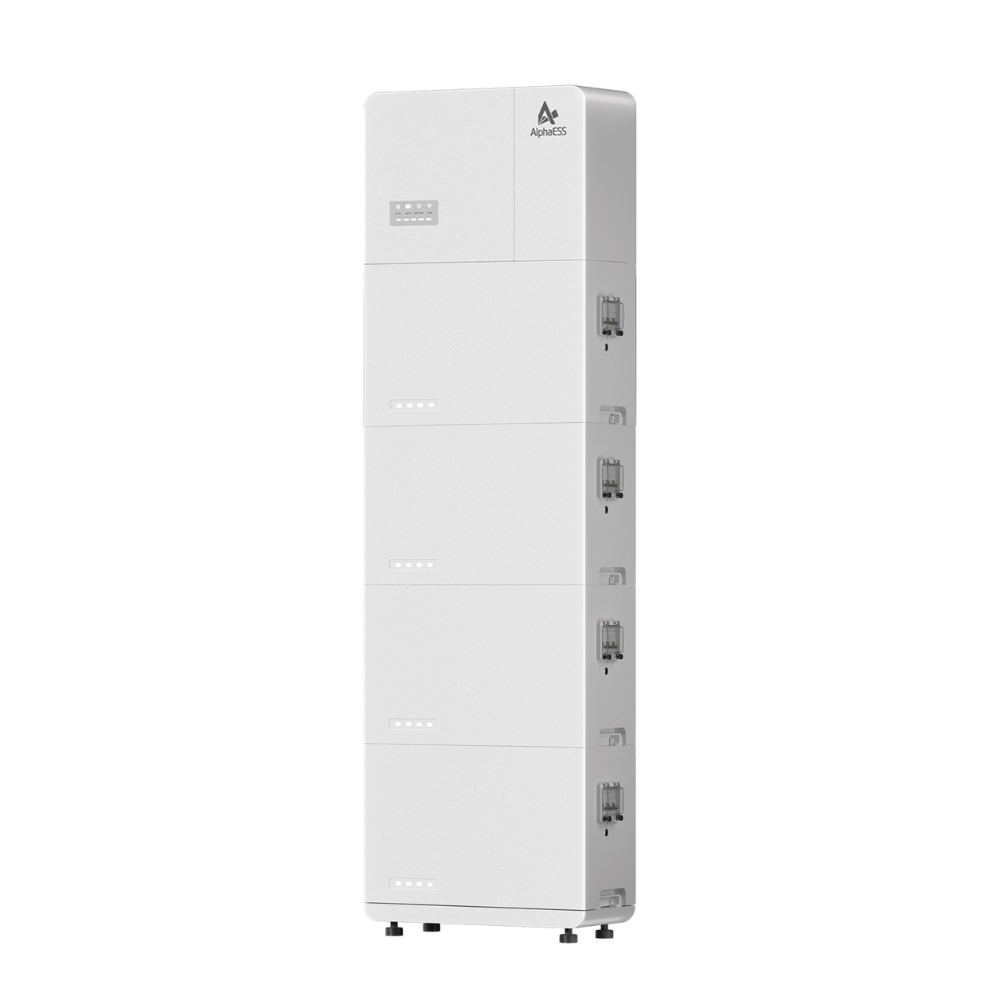

The Alpha ESS Smile M5-20kWh is a modular, all-in-one energy storage solution designed for residential applications. It combines a 5 kW hybrid inverter with scalable battery storage, allowing homeowners to optimize their solar energy usage and achieve greater energy independence.
Key Features:
-
Nominal Output Power: 5 kW
-
Battery Capacity: 5 kWh per module, expandable up to 20 kWh (100% Depth of Discharge)
-
Maximum PV Input Power: 10,000 Wp
-
MPPT Configuration: 2 MPPTs, each supporting 1 string
-
Rated Output Voltage: 230 V
-
Ingress Protection: IP65 (suitable for both indoor and outdoor installations)
-
Communication: Ethernet / Wi-Fi
-
Warranty: 10 years
-
Operating Temperature Range: 0°C to 50°C (Charging); -10°C to 50°C (Discharging)
-
Battery Model: SMILE-M-BAT-5P
-
Battery Module Dimensions (W x D x H): 620 x 240 x 390 mm
-
Battery Module Weight: 49.5 kg
-
Maximum Charging/Discharging Current: 100 A
The Smile M5 system is designed for quick setup and expansion, featuring a stackable design that allows for easy addition of battery modules as energy needs grow. Its built-in aerosol fire suppression system provides an extra layer of safety, and the system's 200% peak overload capacity ensures stable, efficient performance during energy consumption surges.
