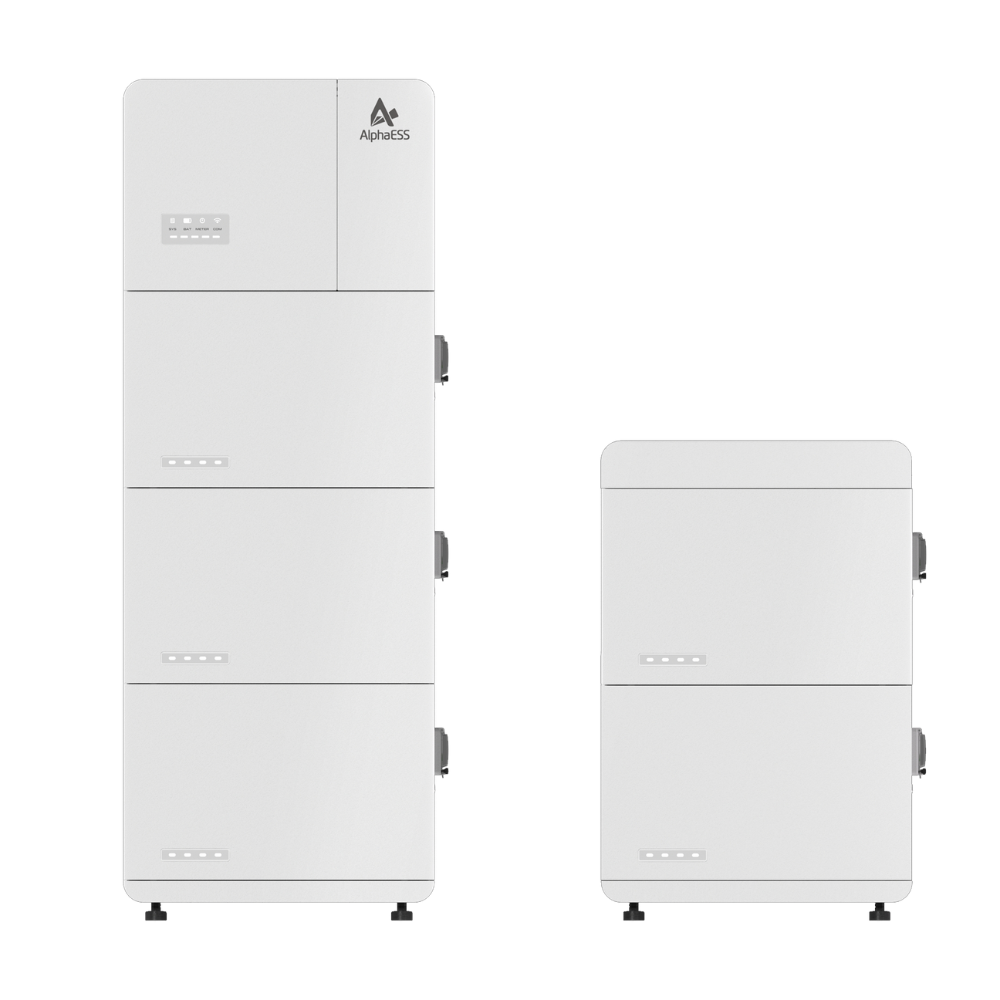

Alpha ESS Smile M5-25kWH

The Alpha ESS Smile M5-25kWh is a high-capacity, modular lithium iron phosphate (LiFePO₄) battery designed for residential and small commercial solar energy storage. It provides reliable energy storage and enhances self-consumption of solar power.

Key Features:

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Usable Capacity: 25 kWh

• Nominal Voltage: 51.2V

• Operating Voltage Range: 44.8V – 57.6V

• Maximum Charge/Discharge Current: 120 A

• Depth of Discharge (DoD): 90%

• Round-Trip Efficiency: >95%

• Scalability: Supports parallel connection with multiple units

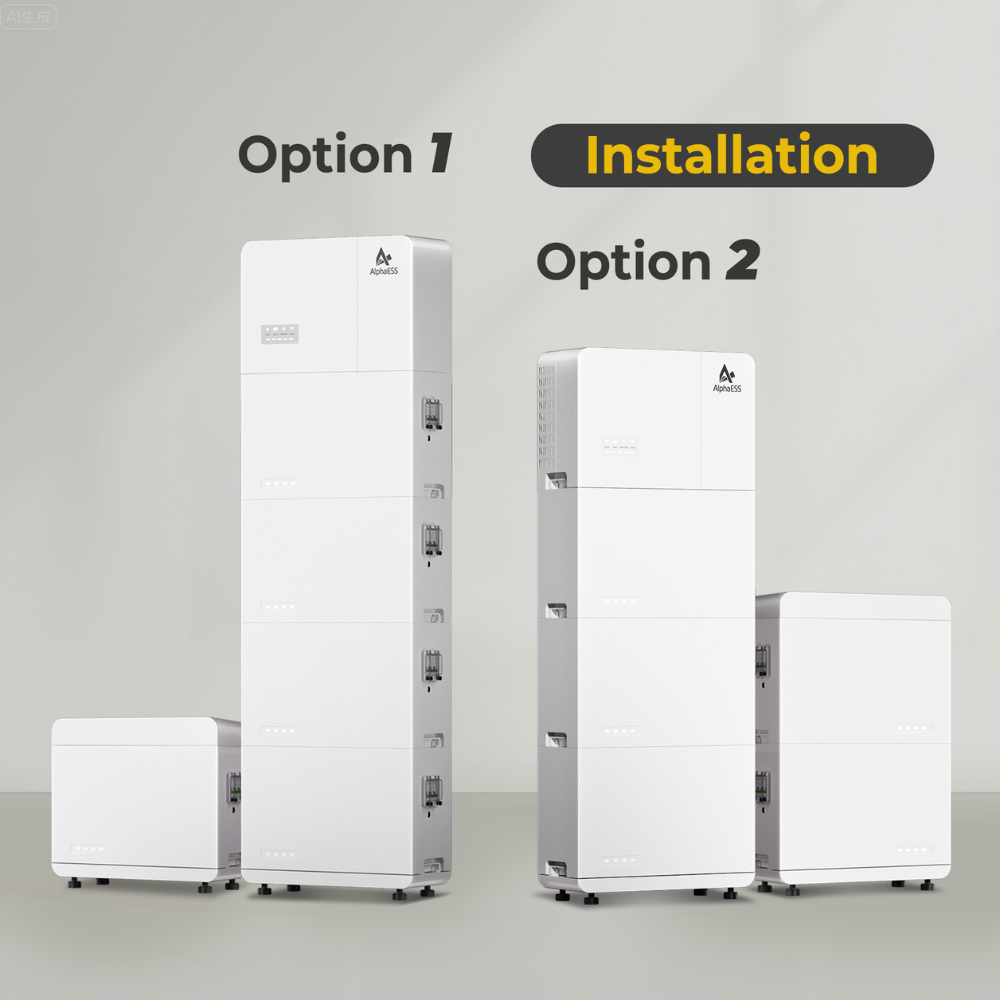

• Mounting Options: Wall-mounted or floor-standing

• Communication Protocols: CAN / RS485

• Protection Rating: IP65 (suitable for indoor and outdoor installation)

• Warranty: 10 years

Pack Content

ZJBeny Battery DC Breaker 500V/125A w/2P enclosure (BDM-125)

E-DCB-125A-500V

x 1

Additional Battery Label Kit AT (use with DC/AC label kit) — AS/NZS 5139:2019

E-LKT-Batt-AT

x 1

Solis S6 5kW Low Voltage AC-Coupled Inverter 1 Phase (SOL-S6-EA1P5K-L)

SOL-S6-EA1P5K-L

x 1

Solis-Dyness PowerBox Pro — Dyness Powerbox Pro 10.24kWh (Dual-brand)

SOL-Dyness-Powerbox-Pro

x 1
