Description

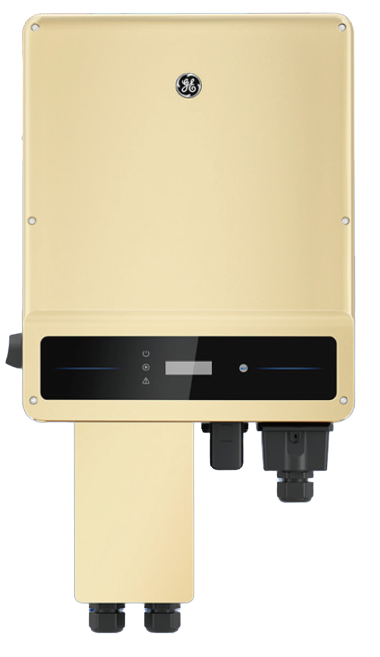

The GE 8.0kW String Inverter is a robust and efficient three-phase solar inverter engineered for residential and light commercial applications. Featuring 2 MPPTs, support for 4 PV strings, built-in Wi-Fi, and an inbuilt DC isolator (DCI), this inverter delivers reliable performance, safety, and smart energy monitoring in one integrated package.
Key Features:
-
8.0kW Output Power: Ideal for medium to large residential rooftops and commercial installations.
-
3 Phase Output: Ensures balanced energy distribution across high-load environments.
-
2 MPPTs / 4 Strings: Allows flexible solar panel configurations and maximizes solar energy yield.
-
Wi-Fi Enabled: Real-time monitoring and system control via GE’s user-friendly app and portal.
-
Inbuilt DC Isolator (DCI): Enhances system safety and simplifies installation.
-
High Efficiency: Advanced tracking algorithms and low power loss ensure better return on investment.
-
IP66 Rated: Weather-resistant housing for reliable indoor and outdoor operation.
-
Advanced Protection: Built-in surge, anti-islanding, over-voltage, and short-circuit protection.
Description
| Rating (kW) | 8 |
|---|---|
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GEP8-3-AU10 (AS4777-2 2020) |
| Weight (kg) | 24.00 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 198.50 |
| Dimension (L*W*H mm) | 415 * 175 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 720 * 910 |
| Product Warranty (Years) | 10 |
