Description

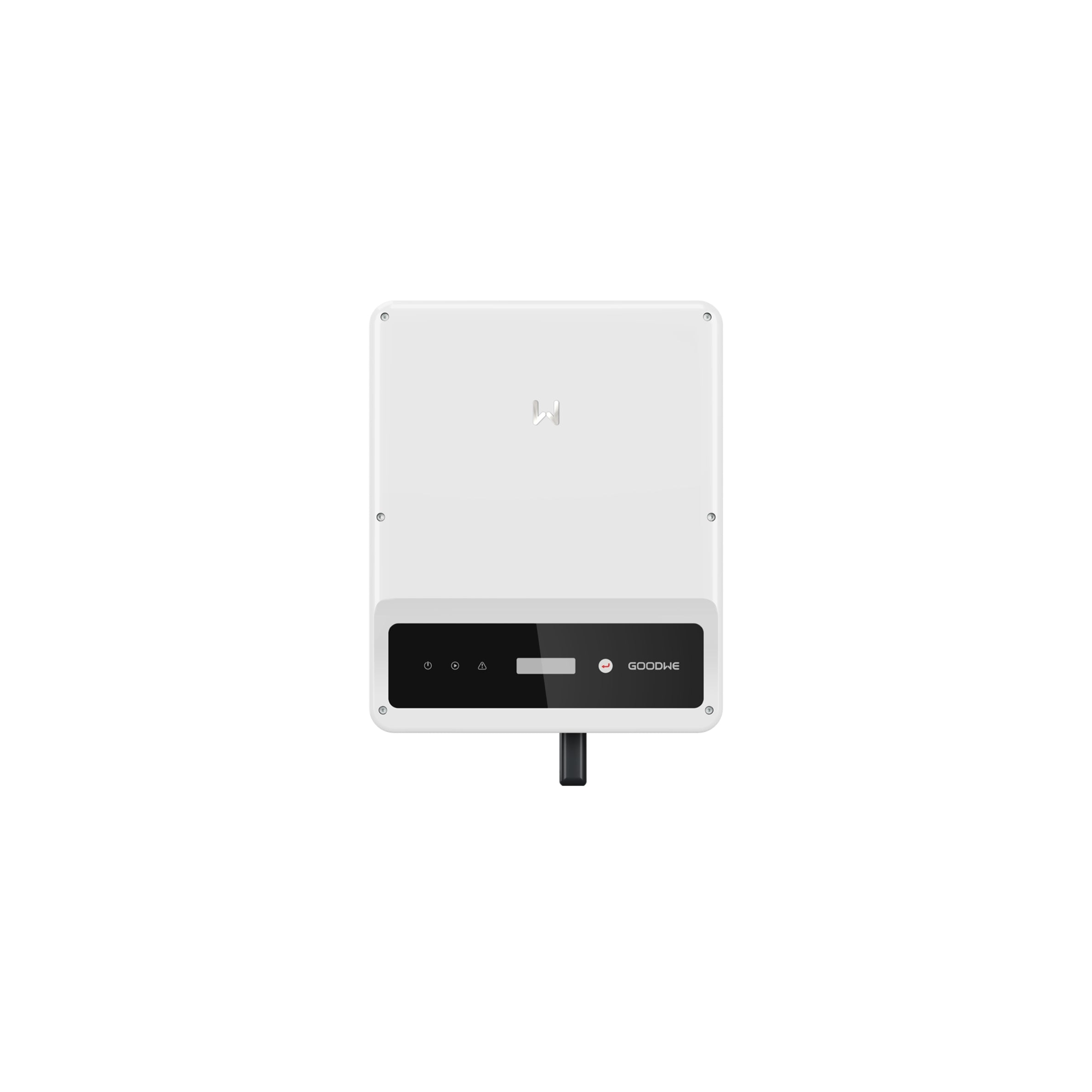

The GoodWe SDT(G2) 8.0kW three-phase inverter is ideal for residential and small commercial solar systems. It features dual MPPTs for efficient power tracking, supports up to 4 strings, and includes Wi-Fi and DCI for smart monitoring. With high conversion efficiency and durable IP65 protection, it ensures stable and long-term solar performance.
Key Features:
-
Rated Output Power: 8.0kW (3 Phase)
-
Dual MPPT with 4 string inputs for flexible design
-
Up to 98.3% maximum efficiency
-
150% DC input oversizing & 110% AC output overloading
-
Built-in Wi-Fi for easy remote monitoring
-
IP65 rated – suitable for outdoor use
-
Compact design and easy installation
-
Equipped with DCI (Direct Current Injection) feature
Description
| Rating (kW) | 8 |
|---|---|
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GW8KAU-DT (AS4777-2 2020) |
| Weight (kg) | 20.50 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 164.00 |
| Dimension (L*W*H mm) | 415 * 175 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 720 * 990 |
| Product Warranty (Years) | 10 |
