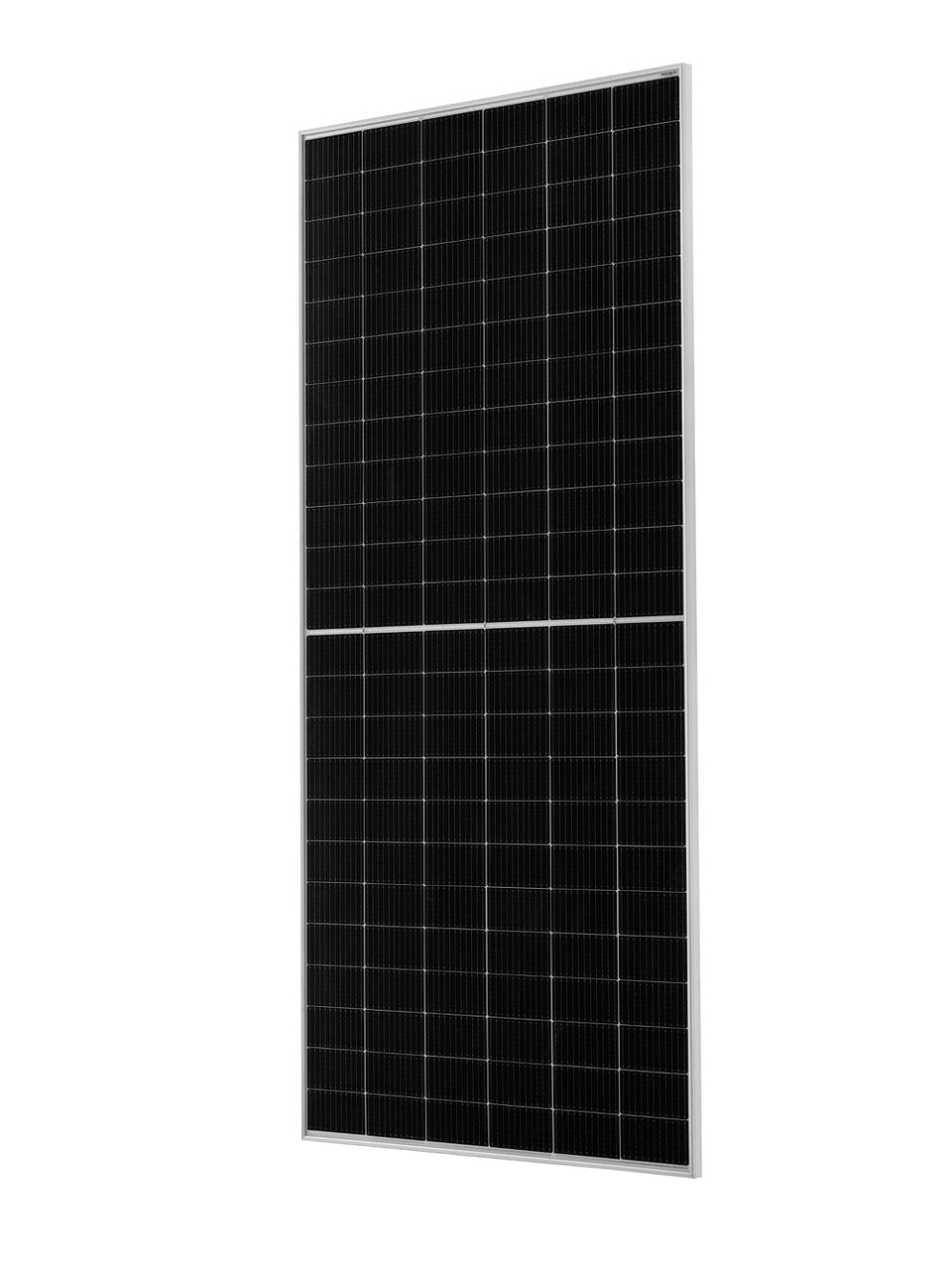

Description
The JA Solar JAM72S30-565 delivers 565W of power using advanced mono PERC half-cell technology. With high durability and MC4 EVO2 connectors, it’s ideal for large ground-mount systems.
Key Features:
-
565W output
-
Mono PERC cells
-
144 half-cell configuration
-
MC4 EVO2 + 1200mm cable
-
30mm silver frame
-
Suitable for commercial solar farms
Description
| Brand | ["Ja Solar"] |
|---|---|
| Power (W) | 565 |
| Glass | 3.2mm |
| Frame Thickness (mm) | 30 |
| Cell Type | P-Type |
| Connector | MC4-EVo2 |
| Frame Color | Silver |
| Cell | 144 half-cell |
| CEC Model | JAM72S30-565/LR/1500V |
| Weight (kg) | 28.00 |
| Qty per Pallet | 36 |
| Pallet Weight (kg) | 1,068.00 |
| Dimension (L*W*H mm) | 2333 * 1134 * 30 |
| Pallet Dimension (L*W*H mm) | 2360 * 1135 * 1252 |
| Product Warranty (Years) | 15 |
| Performance Warranty (Years) | 25 |
