Description

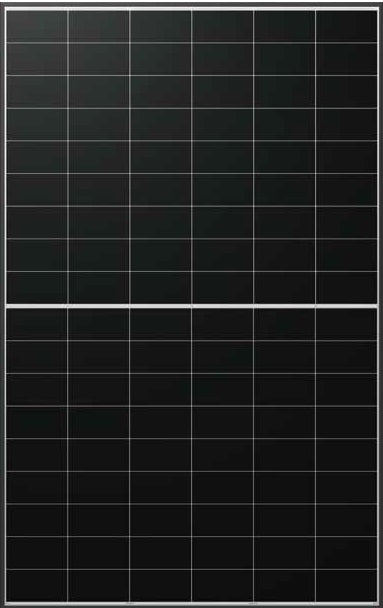

The Jinko Tiger Neo 580W is optimized for high-output installations. It combines N-Type technology with a 144 half-cell silver frame and JK03M connector for outstanding performance and reliability.
Key Features:
-
580W power generation
-
144 half-cell N-Type mono architecture
-
Silver 35mm frame
-
JK03M connector with 1200mm cable
-
IEC 61215:2021 certified
Description
| Brand | ["JinkoSolar"] |
|---|---|
| Power (W) | 580 |
| Glass | 3.2mm |
| Frame Thickness (mm) | 35 |
| Cell Type | N-Type |
| Connector | PV-JK03M |
| Frame Color | Silver |
| Cell | 144 half-cell |
| CEC Model | JKM580N-72HL4-V |
| Weight (kg) | 28.00 |
| Qty per Pallet | 31 |
| Pallet Weight (kg) | 925.00 |
| Dimension (L*W*H mm) | 2278 * 1134 * 35 |
| Pallet Dimension (L*W*H mm) | 2308 * 1120 * 1249 |
| Product Warranty (Years) | 12 |
| Performance Warranty (Years) | 25 |
