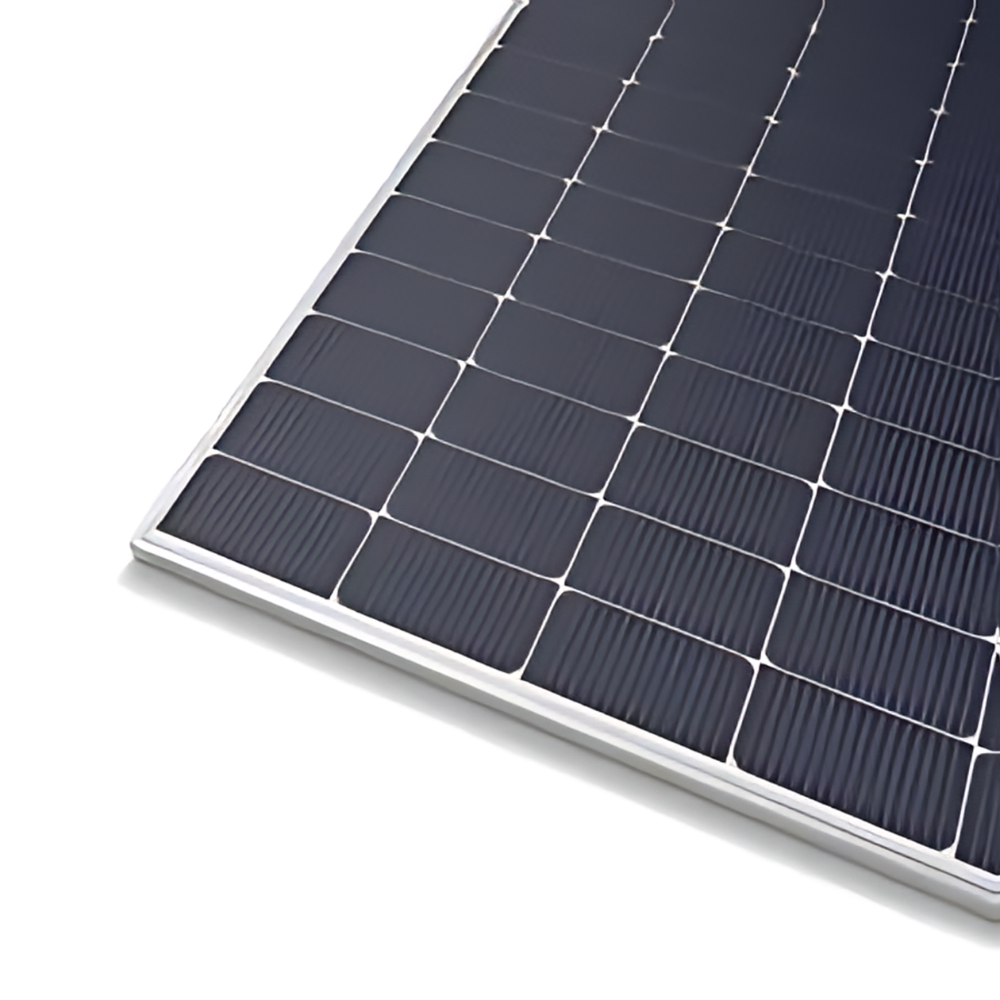

Panda N-Type TOPCon Bifacial Solar Panel 580W–600W
Boost your solar performance with the Panda N-Type TOPCon Bifacial Module – delivering high efficiency, advanced bifacial technology, and next-gen N-Type cells. This 580W–600W panel is designed for maximum energy yield in utility-scale and commercial rooftop installations.
Key Features:
-
Power Output: 580W to 600W for high-performance energy generation
-
N-Type TOPCon Cells: Lower degradation, higher efficiency than P-Type modules
-
Bifacial Design: Captures sunlight from both sides for up to 30% more yield
-
Excellent Low Light Performance: Keeps producing even on cloudy days
-
PID & LID Resistant: Stable long-term performance with minimal power loss
-
Durable Build: Certified to withstand wind loads, snow, and salt mist
-
Long Warranty: 30-year linear power output warranty
Description
| Module efficiency-ηm (%) | 22.5 |
|---|---|
| Power output-Pmax (W) | 643 |
| Voltage at Pmax - Vmpp (V) | 42.65 |
| Current at Pmax-Impp (A) | 15.07 |
| Open-circuit voltage-Voc (V) | 51.46 |
| Short-circuit current-Isc (A) | 15.93 |
| Maximum Power (Pmax) | 603 |
| Module Efficiency STC (%) | 23.4% |
| Nominal operating cell temperature-NOCT(°C) | 42±2 |
| Temperature coefficient of Pmax-γ(% / °C) | -0.29 |
| Temperature coefficient of Voc-β(% / °C) | -0.24 |
| Temperature coefficient of Isc-α(% / °C) | 0.042 |
| Max. system voltage | 1500 VDC |
| Max. series fuse rating | 30 A |
| Operating temperature range | -40°C ~ 70°C |
| Max. static load, front (e.g., snow) | 1600 Pa |
| Max. static load, back (e.g., wind) | 1600 Pa |
| Max. hailstone impact (diameter / velocity) | 25 mm / 23 m·s-1 |
| Cell (material / quantity) | n-type monocrystalline silicon / 6 x 24 |
| Glass (thickness) | 2.0 mm / 2.0 mm |
| Frame (material) | Anodised aluminum alloy |
| Junction box (type / protection degree) | 3 bypass diodes / IP68 |
| Plug connector (type) | Staubli EVO2 or Yitong YT18-01 or Renhe RHC2 |
| Cable (length / cross-sectional area) | ±1400 mm or customised length / 4 mm2 |
| Box weight | 1207 kg |
