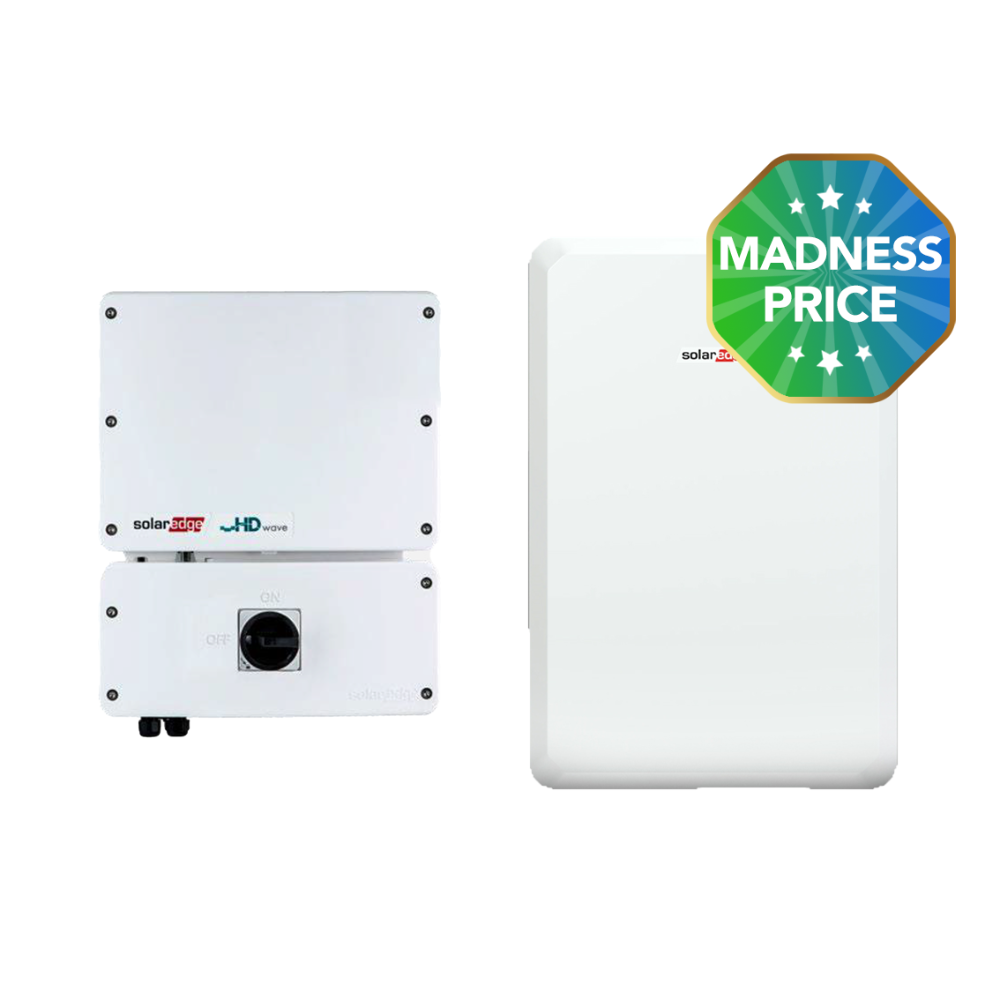

SolarEdge Three Phase 10kW Hybrid Inverter + 10kWh Home Battery for New Installation (No Backup)

The SolarEdge Three-Phase 10kW Hybrid Inverter is a high-performance inverter designed for residential solar energy systems. It efficiently converts DC electricity generated by solar panels into AC electricity for household use and manages the charging and discharging of the battery storage system.

Key Features:

• Rated AC Output Power: 10,000 VA

• Maximum Apparent AC Output Power: 10,000 VA

• AC Output Line Connections: 3W + PE, 4W + PE

• AC Output Voltage (Line to Line / Line to Neutral): 380/220; 400/230 Vac

• AC Output Voltage Range (Line to Neutral): 184 - 264.5 Vac

• AC Frequency: 50/60 ± 5 Hz

• Maximum Continuous Output Current (per Phase): 16 A

• Maximum DC Input Voltage: 1,000 V

• Nominal DC Input Voltage: 380 V

• Maximum DC Input Current: 16.5 A

• MPPT Quantity: 2

• Maximum Efficiency: 99.2%

• European Weighted Efficiency: 99%

• Night-Time Power Consumption: < 2.5 W

• Operating Temperature Range: -40°F to +185°F

• Warranty: 12 years (extendable to 20 or 25 years)

This inverter is optimized for use with the SolarEdge Home Battery and is compatible with various SolarEdge single-phase inverters.

Pack Content

ZJBeny Battery DC Breaker 500V/125A w/2P enclosure (BDM-125)

E-DCB-125A-500V

x 1

Additional Battery Label Kit AT (use with DC/AC label kit) — AS/NZS 5139:2019

E-LKT-Batt-AT

x 1

Solis S6 5kW Low Voltage AC-Coupled Inverter 1 Phase (SOL-S6-EA1P5K-L)

SOL-S6-EA1P5K-L

x 1

Solis-Dyness PowerBox Pro — Dyness Powerbox Pro 10.24kWh (Dual-brand)

SOL-Dyness-Powerbox-Pro

x 1
