Description

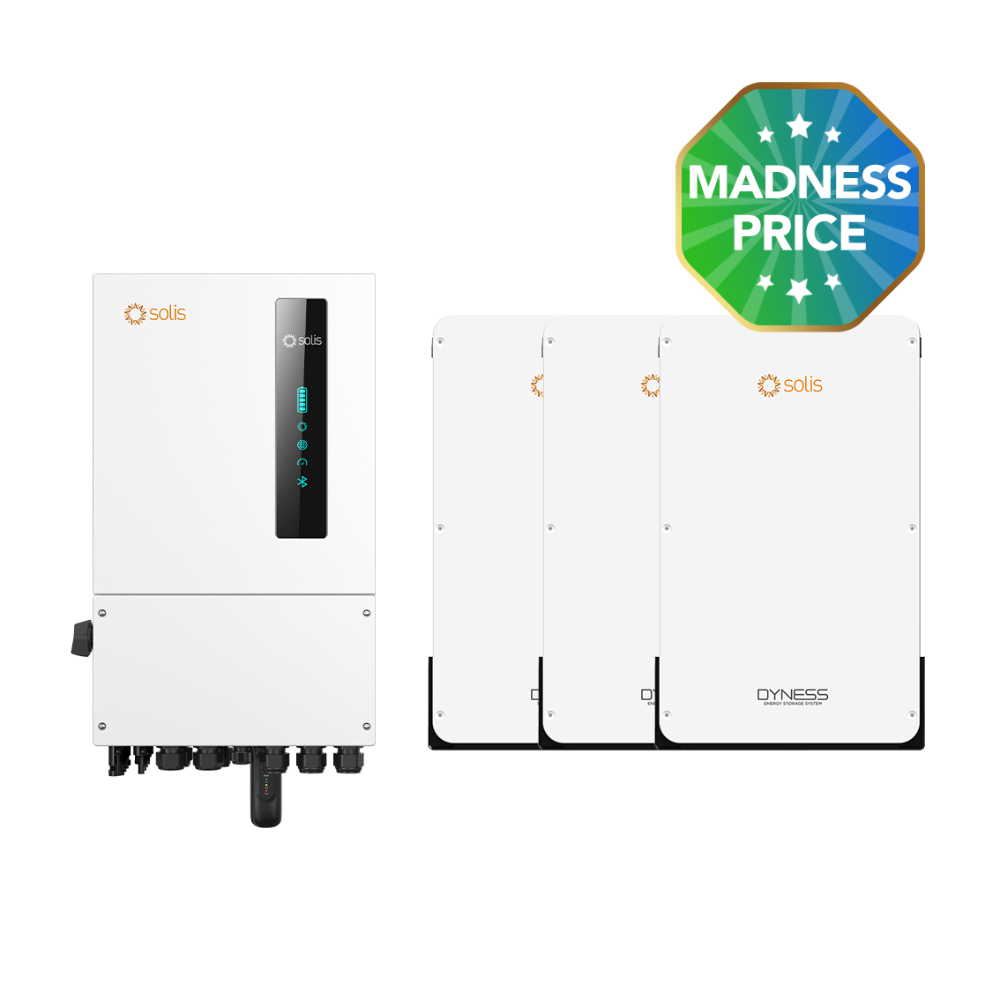

The Solis S6 EH 8kW PLUS is a high-performance hybrid inverter designed for residential energy storage systems. It efficiently manages solar energy conversion and storage, optimizing energy use and reducing electricity costs.
Key Features:
-
Rated Output Power: 8 kW
-
MPPT Configuration: 2 MPPTs
-
DC Input Voltage Range: 90V – 435V
-
Maximum Input Voltage: 500V
-
Maximum Input Current per MPPT: 16A
-
Maximum AC Output Current: 32A
-
Maximum AC Output Power (5 minutes): 8,000W
-
Surge Output Power (1 second): 8,001W
-
Battery Voltage Range: 40V – 60V
-
Maximum Charge/Discharge Current: 190A
-
Number of Input Strings: 4
-
Number of MPPTs: 2
-
Maximum PV Input Power: 16,000W
-
Efficiency: Up to 96.5%
-
Protection Rating: IP65 (suitable for both indoor and outdoor installations)
-
Operating Temperature Range: -25°C to +60°C
-
Warranty: 5 years
This inverter is compatible with various high-power PV panels and supports multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW.
