Description

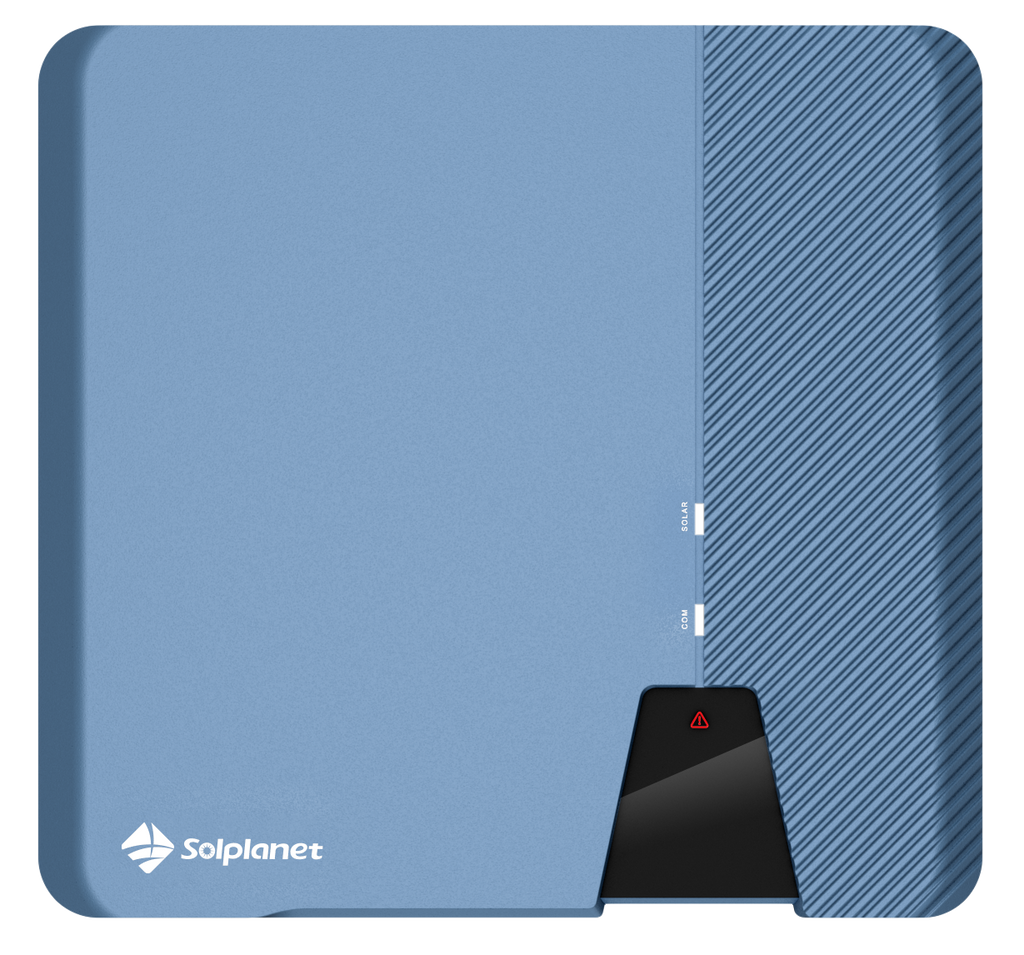

The Solplanet ASW8000-S-A 8kW Single-Phase Inverter is an advanced, smart solar solution designed for residential and small commercial applications. With 3 MPPTs and 3 string inputs, it delivers superior energy optimization across complex rooftop configurations. Integrated Wi-Fi connectivity allows for seamless real-time monitoring, while the inbuilt DC isolator (DCI) ensures safe and hassle-free installation.This model includes 24-hour load consumption monitoring (SPS), offering precise insight into energy usage and helping users maximize self-consumption, manage export limits, and improve system efficiency.
Key Features:
-
8kW single-phase output – Ideal for large homes or small businesses
-
3 MPPTs and 3 string inputs – Maximized power generation from diverse panel layouts
-
24H consumption monitoring (SPS) – Real-time energy usage insights
-
Built-in Wi-Fi – Monitor performance via Solplanet Cloud app
-
Integrated DC isolator (DCI) – Enhances safety and compliance
-
IP66 rated – Weather-resistant for indoor/outdoor installation
-
Smart grid ready – Suitable for export control and energy management
Description
| Brand | ["Solplanet"] |
|---|---|
| Rating (kW) | 8 |
| MPPT | |
| DC Switch | Yes |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 66 |
| CEC Model | ASW8000-S-A (AS4777-2 2020) |
| Weight (kg) | 18.00 |
| Dimension (L*W*H mm) | 183 * 503 * 435 |
