Description

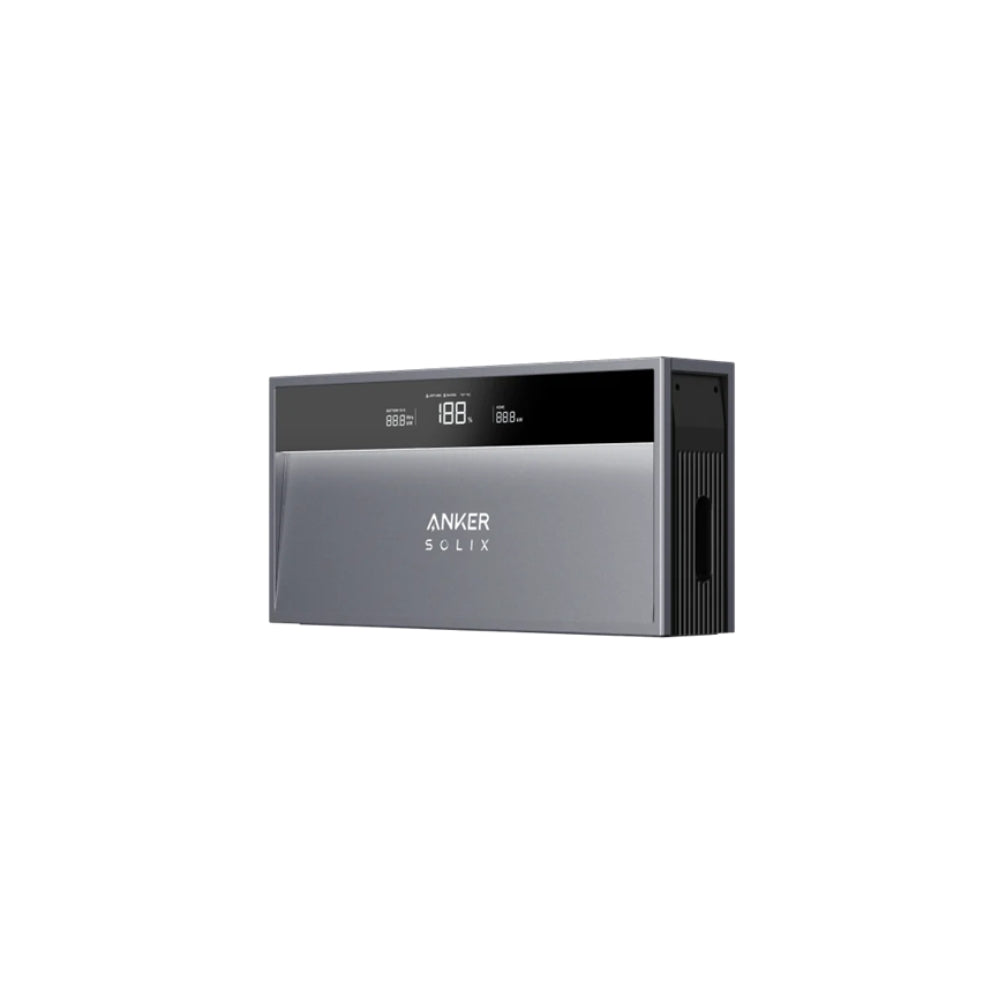

The Anker SOLIX X1 Hybrid Inverter (10kW, Three-Phase) is a powerful and efficient inverter designed for residential and commercial solar systems. It supports hybrid operation with solar, battery, and grid connection for seamless power management. Equipped with dual MPPTs, built-in Wi-Fi for smart monitoring, and a DTSU666 meter with 3×100A CTs for accurate three-phase energy measurement.
Key Features:
-
Rated Output Power: 10kW (Three-Phase)
-
Dual MPPT design supports 2 PV strings
-
Integrated Wi-Fi for smart monitoring and control
-
Includes DTSU666 Meter with 3×100A CTs for accurate energy tracking
-
Supports solar + battery + grid hybrid operation
-
IP66-rated enclosure for outdoor or indoor installation
-
Compact and durable design (Approx. 670×450×150 mm, 30 kg)
-
High efficiency and reliable performance
-
10-year standard warranty
Description
| Rating (kW) | 10 |
|---|---|
| Max. DC-Input Capacity | 20000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential,Residential Hybrid |
| Type | Hybrid HV |
| Phase | Three Phase |
| IP Rating | IP66 |
| CEC Model | X1-H10K-T (AS4777-2 2020) |
| Weight (kg) | 30.00 |
| Dimension (L*W*H mm) | 670 * 450 * 150 |
| Product Warranty (Years) | 10 |
