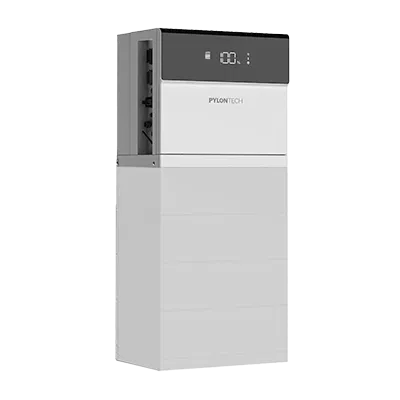

Force H3X Hybrid 1Ph FH3X-5K-HY-1P

Brand	["Pylontech"]

Topology	transformerless
Max. short circuit current per MPPT (A)	25,0
Start input voltage (V)	80
Charging voltage (V)	102.4-409.6
MPP max. voltage range input (V)	550.00
Charging current (A)	40.00
Max. input voltage DC (V)	600.00
Number of independent MPPT (pcs)	2
Total number of string inputs	2
Min. temperature ambient (°C)	-10
Contact for self-consumption optimization (e.g. for heat pump)	2
Max. input current DC (A) total	32.00
Surge protection AC	type 2
AC nominal power (kW)	5.00
European efficiency (%)	97.50
Battery Connection	AC/DC
Max. generator power DC (kWp)	8.00
Display	w/o display
Max. efficiency (%)	98.00
MPP min. voltage range input (V)	80.00
Integrated DC switch	yes
Max. output current (A)	21.70
Protection degree	IP55
Surge protection DC	type 2
Backup system light	yes
Max. AC power (kVA)	5.00
Integrated AC switch	no
Arc Fault Circuit Interrupter	yes
Decibel	29
Max. short circuit current (A) total	50.00
Max. input current per MPPT (A).	16,0
