Description

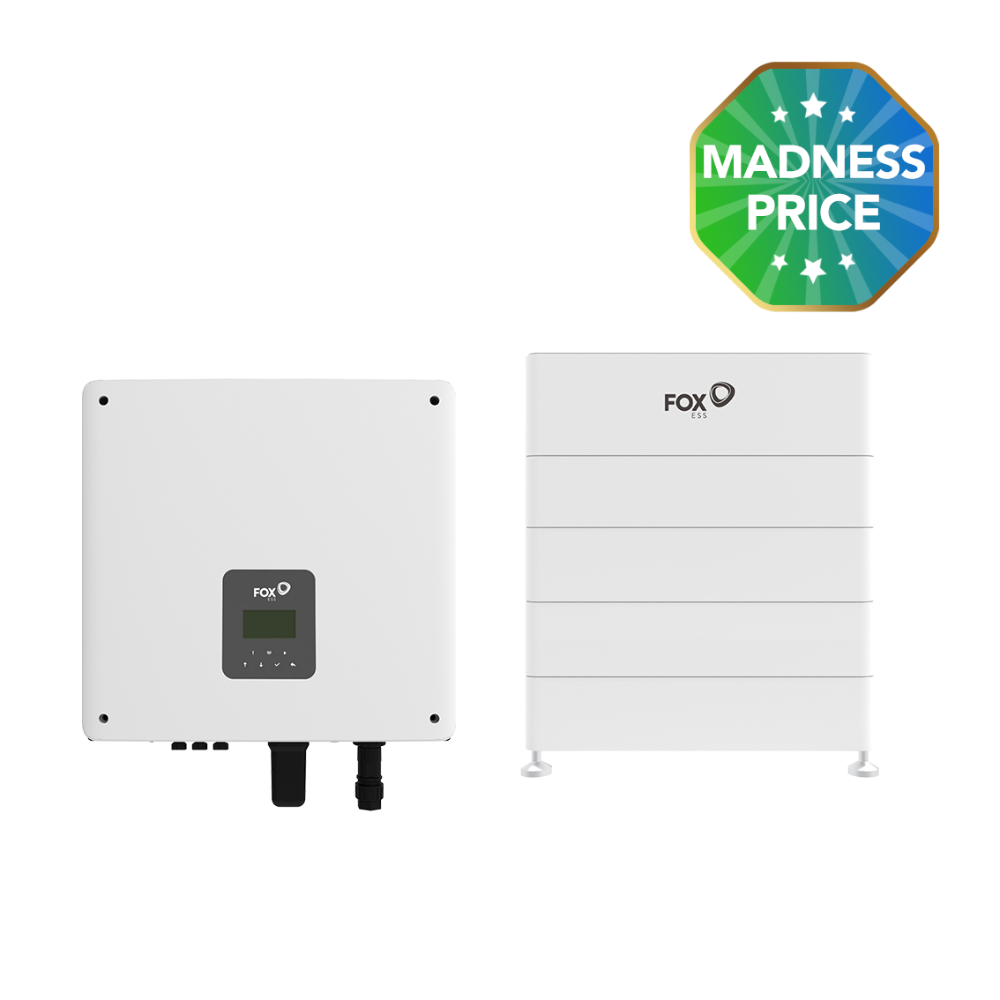

The Fox ESS H1(G2) 5.0kW Hybrid Inverter is designed for residential energy storage systems, offering seamless integration with high-voltage lithium-ion batteries.
Key Features:
-
Rated Output Power: 5.0 kW
-
MPPT Configuration: 2 MPPTs
-
DC Input Voltage Range: 80V – 550V
-
Maximum Input Voltage: 600V
-
Maximum Input Current per MPPT: 32 A
-
Maximum AC Output Current: 23.9 A
-
Rated Output Voltage: 220–240 V
-
Rated Output Frequency: 50/60 Hz
-
Peak Output Apparent Power (60s): 7,200 VA
-
Surge Output Power (1s): 5,500 W
-
Maximum Efficiency: 97.8%
-
Battery Charge Efficiency: 98.5%
-
Battery Discharge Efficiency: 97.0%
-
Operating Temperature Range: -25°C to +60°C
-
Protection Rating: IP65 (suitable for both indoor and outdoor installations)
-
Dimensions (W × D × H): 430 × 410 × 178 mm
-
Weight: 22 kg
-
Communication Protocols: Wi-Fi, RS485
-
Backup Power Output: Integrated Emergency Power Supply (EPS)
-
Warranty: 5 years
This inverter efficiently manages solar energy production and storage, optimizing energy use and reducing electricity costs.
