Description

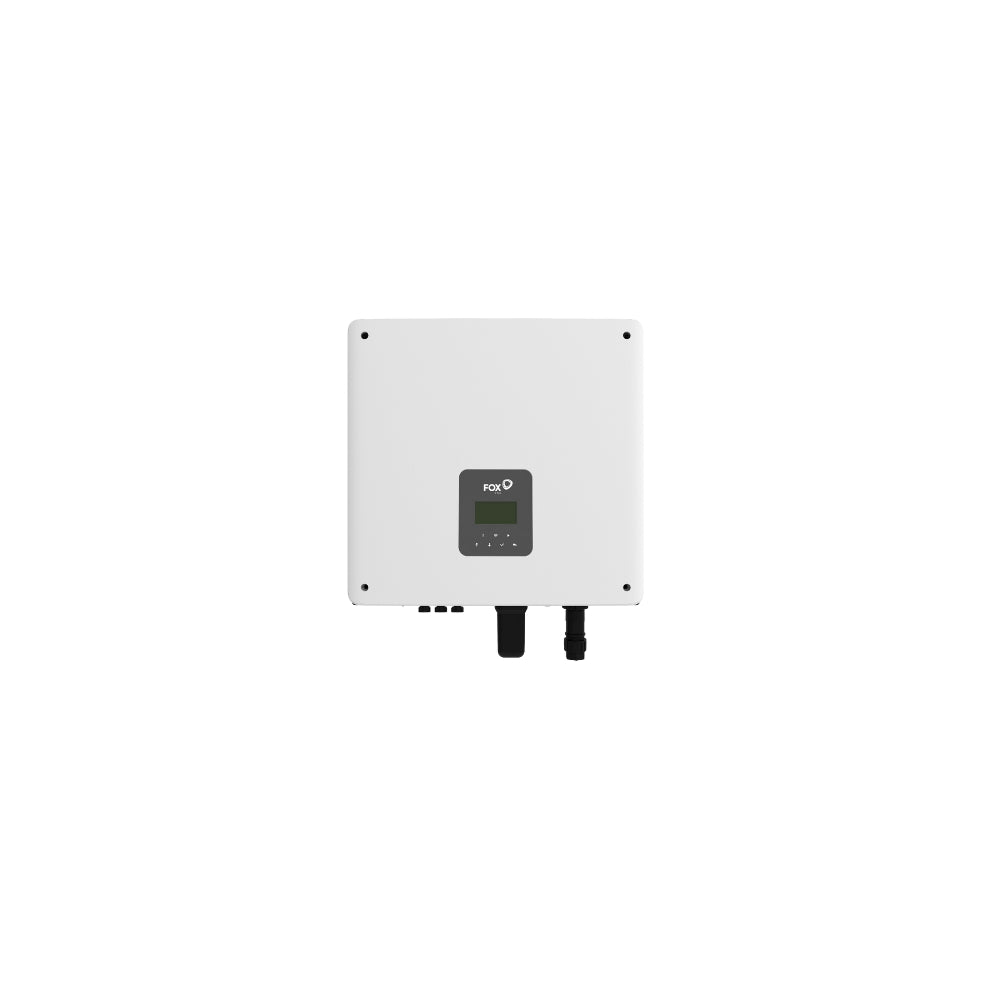

The FOXESS 5.0kW Single Phase Hybrid Inverter offers advanced solar energy conversion with a sleek design and smart energy management. Featuring dual MPPTs for optimized solar performance, 200% DC oversizing for maximum yield, and CT sensors for accurate export and consumption monitoring, this inverter ensures superior efficiency and reliability. Integrated Wi-Fi connectivity allows easy system monitoring via the FoxESS Cloud or mobile app, while built-in DCI protection enhances operational safety and stability.
Key Features:
-
5.0kW single-phase hybrid inverter
-
Dual MPPTs for high tracking efficiency
-
200% DC input oversizing for maximum solar utilization
-
CT for export limitation and consumption monitoring
-
Integrated Wi-Fi for remote monitoring and control
-
Built-in DCI protection for system safety
-
Compact, efficient, and user-friendly design
Description
| Rating (kW) | 5 |
|---|---|
| Max. DC-Input Capacity | 10000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential Hybrid |
| Type | Hybrid HV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | H1-5.0-E-G2 (AS4777-2 2020) |
| Weight (kg) | 22.00 |
| Qty per Pallet | 14 |
| Dimension (L*W*H mm) | 434 * 418 * 185 |
| Packaging Dimension (L*W*H mm) | 562 * 542 * 282 |
