Description

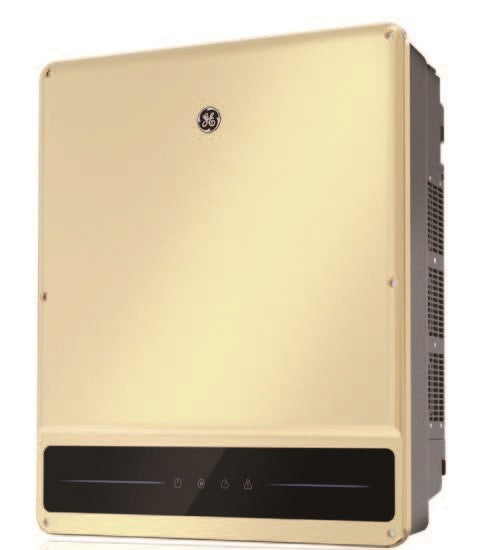

The GE 29.9kW 3-Phase Solar Inverter is a high-efficiency, grid-tied inverter designed for large commercial and industrial solar PV systems. With a robust 29.9kW output, three independent MPPTs, and smart connectivity via WiFi, it ensures maximum energy yield, system safety, and seamless monitoring. Built with an inbuilt DC isolator (DCI), this inverter simplifies installation and complies with safety standards without the need for external DC switches.
Key Features:
- 29.9kW power output – ideal for large-scale solar installations
- MPPTs (Maximum Power Point Tracking) – optimize performance across multiple array orientations
- Three-phase output – supports industrial-grade power distribution
- Integrated WiFi – enables real-time monitoring and remote diagnostics
- Built-in DC isolator (DCI) – enhances safety and reduces wiring complexity
- High conversion efficiency – maximizes ROI on solar investment
- Smart cooling system – ensures consistent performance under high loads
- Compact and durable design – built for long-term operation in demanding environments
Description
| Rating (kW) | 29.9 |
|---|---|
| Max. DC-Input Capacity | 45500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Commercial |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GEP29.9-10 (AS4777-2 2020) |
| Weight (kg) | 40.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 542.00 |
| Dimension (L*W*H mm) | 480 * 200 * 590 |
| Pallet Dimension (L*W*H mm) | 1240 * 800 * 1980 |
| Product Warranty (Years) | 10 |
