Description

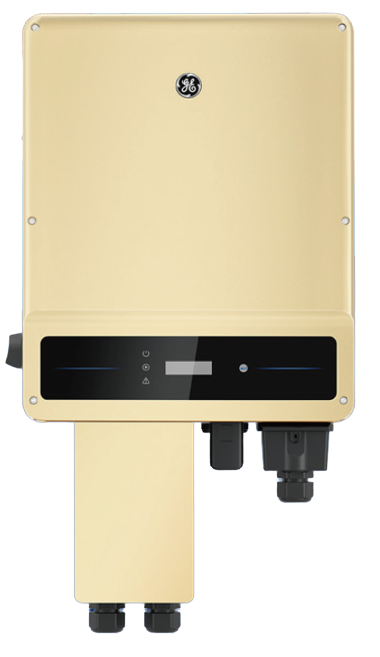

The GE 10kW 3-Phase String Inverter is a high-performance solar inverter engineered for residential and commercial solar power systems. Equipped with 2 MPPTs, built-in Wi-Fi, and an inbuilt DC isolator (DCI), this inverter delivers maximum energy efficiency, real-time monitoring, and advanced safety in a compact and easy-to-install design.
Key Features:
-
10kW AC Output: Perfect for medium to large 3-phase solar installations.
-
Dual MPPT (Maximum Power Point Tracking): Ensures optimal energy harvest from solar arrays with different orientations or shading conditions.
-
Inbuilt DC Isolator (DCI): Enhances system safety and reduces installation complexity and cost.
-
Wi-Fi Connectivity: Enables seamless system monitoring and remote diagnostics through the GE monitoring app.
-
High Efficiency: Up to 98.6% conversion efficiency for superior performance.
-
Smart Grid Ready: Supports future-proof energy integration with grid compliance and export control.
-
Compact, Robust Design: Easy to mount, IP65 rated for outdoor durability.
Description
| Brand | ["General Electric"] |
|---|---|
| Rating (kW) | 10 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GEP10-3-AU10 (AS4777-2 2020) |
| Weight (kg) | 24.00 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 198.50 |
| Dimension (L*W*H mm) | 415 * 175 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 720 * 910 |
| Product Warranty (Years) | 10 |
