Description
Powerful. Intelligent. Reliable.

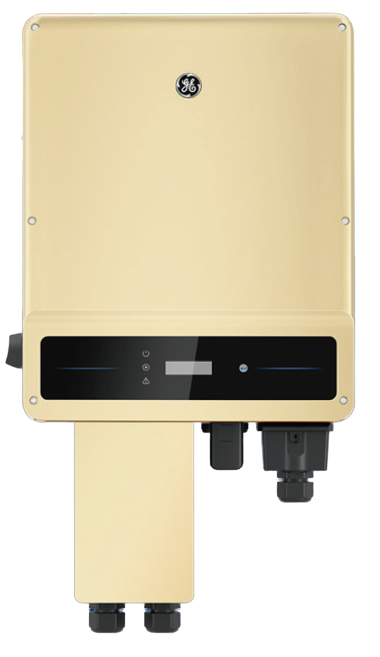

The GE 15kW 3-Phase String Inverter is engineered to deliver maximum performance and efficiency for commercial and industrial solar installations. With dual MPPT trackers, built-in WiFi, and advanced DCI (Direct Current Injection) protection, this inverter offers the perfect balance of power and safety.
Key Features:
-
High Efficiency Output
Up to 98.6% conversion efficiency ensures optimal energy yield and lower operating costs. -
3-Phase Compatibility
Designed for balanced 3-phase loads, ideal for commercial setups and large-scale solar systems. -
Dual MPPT Design
Two Maximum Power Point Trackers (MPPT) allow for flexible string configuration and optimized energy harvest in variable shading conditions. -
Built-in WiFi Monitoring
Monitor performance in real time via smartphone or desktop with GE’s intuitive remote monitoring platform. -
Inbuilt DCI Protection
Advanced Direct Current Injection (DCI) safeguard ensures compliance with grid standards and enhances system safety. -
Compact & Robust Design
Lightweight and IP65-rated for outdoor installation, ensuring durability against dust, water, and harsh environmental conditions.
Technical Specifications:
-
Rated Power: 15,000W (15kW)
-
Input: 2 MPPT / Max DC Voltage: 1100V
-
Output: 3-Phase, 400V nominal
-
Connectivity: WiFi / RS485
-
Safety: DC Switch, DCI, AFCI (optional)
-
Certifications: IEC 62109-1/-2, IEC 61727, CE, ISO
Description
| Rating (kW) | 15 |
|---|---|
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GEP15-3-10 (AS4777-2 2020) |
| Weight (kg) | 26.00 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 200.00 |
| Dimension (L*W*H mm) | 415 * 198 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 960 * 1020 |
| Product Warranty (Years) | 10 |
