Description

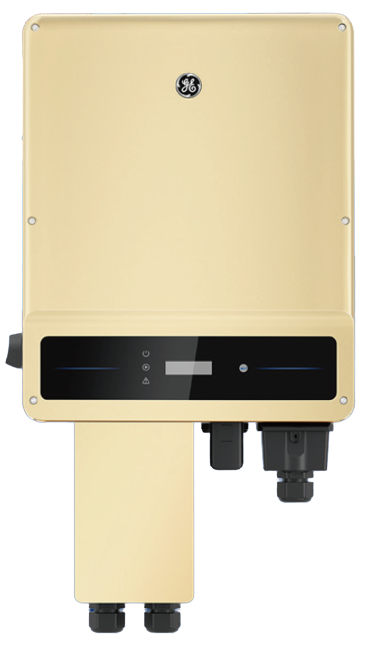

The GE 5.0kW 3-Phase String Inverter is a compact and efficient solution for residential and small commercial solar systems. Designed under the trusted GE brand, it features 2 MPPTs to optimize performance across varying roof conditions and orientations. With built-in Wi-Fi, users can monitor system performance remotely via the GE smart energy platform.The inverter includes a factory-integrated DC isolator (DCI) for enhanced safety and ease of installation. Rugged and reliable, this three-phase inverter supports smart grid requirements and is suitable for both indoor and outdoor environments.
Key Features:
-
5.0kW 3-phase output – Perfect for small commercial or advanced residential systems
-
2 MPPTs – Efficient power tracking across multiple panel orientations
-
Integrated Wi-Fi – Real-time monitoring via the GE cloud platform
-
Built-in DC isolator (DCI) – Simplifies installation and improves safety
-
IP66-rated – Designed for harsh outdoor conditions
-
Smart grid ready – Supports export control and dynamic grid interaction
Description
| Rating (kW) | 5 |
|---|---|
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Residential |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GEP5.0-3-10 (AS4777-2 2020) |
| Weight (kg) | 20.50 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 177.50 |
| Dimension (L*W*H mm) | 415 * 175 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 720 * 910 |
| Product Warranty (Years) | 10 |
