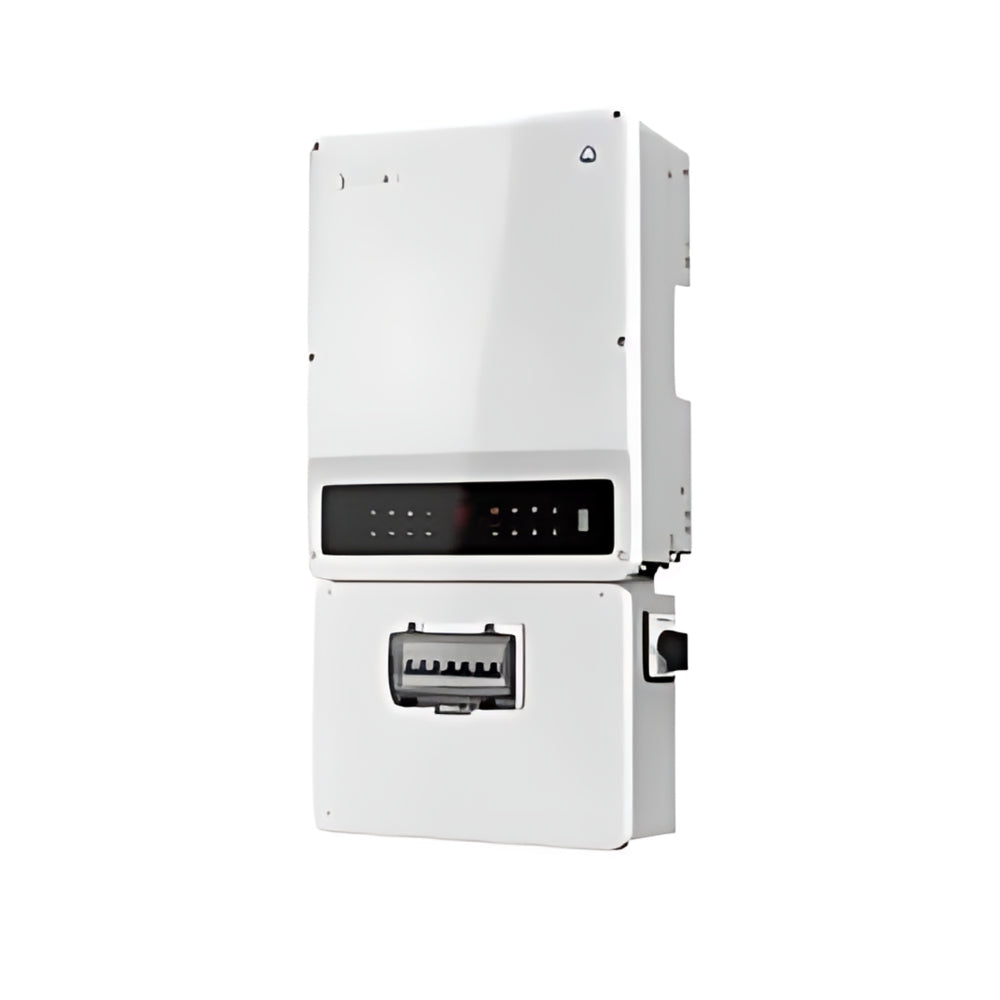

5kW Single-Phase Hybrid Inverter | EHB Series
Smarter Solar. Battery-Ready. Backup Built-In.
The GW5K-EHB-AU-G11 from GoodWe’s EHB Series is a high-performance hybrid inverter built for modern Australian homes. It delivers reliable 5kW single-phase output, advanced battery compatibility, and seamless backup power — all in a compact, installer-friendly unit.
Designed with 3 independent MPPTs, it gives installers maximum flexibility for complex or split-array rooftops. With 200% PV oversizing, high-voltage battery support, and <10ms backup switching, this inverter is built for homes that want more out of solar — now and into the future.
Key Features
- 5kW Single-Phase Output – Reliable power for most residential installs
- 3 MPPTs – Flexibility to connect solar across multiple roof orientations
- 200% PV Oversizing – Connect up to 10kW of panels for bigger performance
- Battery-Ready – Compatible with HV batteries (80–495V)
- Built-In Backup – <10ms UPS switch time for critical loads
- Fanless Cooling – Silent operation and low maintenance
- Smart Monitoring – SEMS Portal access via Wi-Fi or optional 4G
- Rapid Shutdown & AFCI – Built-in safety compliance for Australian standards
Frequently Asked Questions
How many MPPTs does this inverter have?
Three. This model features 3 independent MPPTs, offering excellent string design flexibility — perfect for homes with solar on 3 orientations or partial shading.
Can it run during a blackout?
Yes. The inverter offers seamless backup functionality with <10ms switch time — ideal for keeping fridges, lights, and essential circuits powered during outages.
Is it compatible with batteries?
Absolutely. The GW5K-EHB-AU-G11 is battery-ready and works with a wide range of high-voltage lithium battery brands (80–495V range).
What size solar array can I install?
You can install up to 10kW of solar panels (200% of inverter rating), making it ideal for homes planning to over-size their PV system for greater daytime generation or future battery charging.
How do I monitor the system?
You can monitor performance and data via GoodWe’s SEMS Portal, accessible on desktop or mobile. Real-time stats, alerts, and remote support all included.
Is it easy to install?
Yes. It includes pre-wired AC/DC breakers, external comms ports, and a plug-and-play layout. The fanless design also reduces moving parts and noise.
What’s the warranty?
It comes with a full 10-year product warranty, supported by GoodWe’s local team here in Australia.
Description
| Brand | ["GoodWe"] |
|---|---|
| Weight (kg) | 29.0000 |
| Part Number | GW5K-EHB-AU-G11 |
| Kilowatt Rating (kW) | 5kW |
| Single Phase or 3 Phase | Single Phase |
| Sub Category | Inverters |
| Freight Levy | Freight Applies To All Postcodes |
| Length (mm) | 415 |
| Height (mm) | 791 |
| Width (mm) | 180 |
| Length Packaging (mm) | 415 |
| Height Packaging (mm) | 791 |
| Width Packaging (mm) | 180 |
| Barcode (Secondary) | Naf5000-01-00p |
| Barcode | 2000101044536 |
