Description

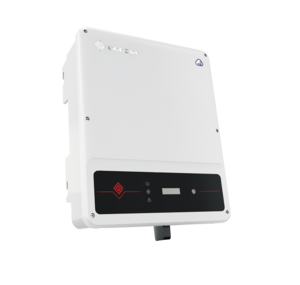

The GoodWe SDT G2 20kW inverter offers powerful performance and system flexibility. It supports large-scale PV applications with 2 MPPTs, DC cover, Wi-Fi, and export limitation-ready DCI.
Key Features:
-
20kW output for commercial-grade use
-
Dual MPPTs for panel string efficiency
-
DC cover & built-in isolation
-
Wi-Fi & DCI for monitoring & compliance
-
Designed for high-performance installations
Description
| Brand | ["Goodwe"] |
|---|---|
| Rating (kW) | 20 |
| Max. DC-Input Capacity | 30000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Use Application | Commercial |
| Type | String |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | GW20KAU-DT (AS4777-2 2020) |
| Weight (kg) | 26.00 |
| Qty per Pallet | 6 |
| Pallet Weight (kg) | 241.00 |
| Dimension (L*W*H mm) | 415 * 175 * 511 |
| Pallet Dimension (L*W*H mm) | 1120 * 960 * 1020 |
| Product Warranty (Years) | 10 |
