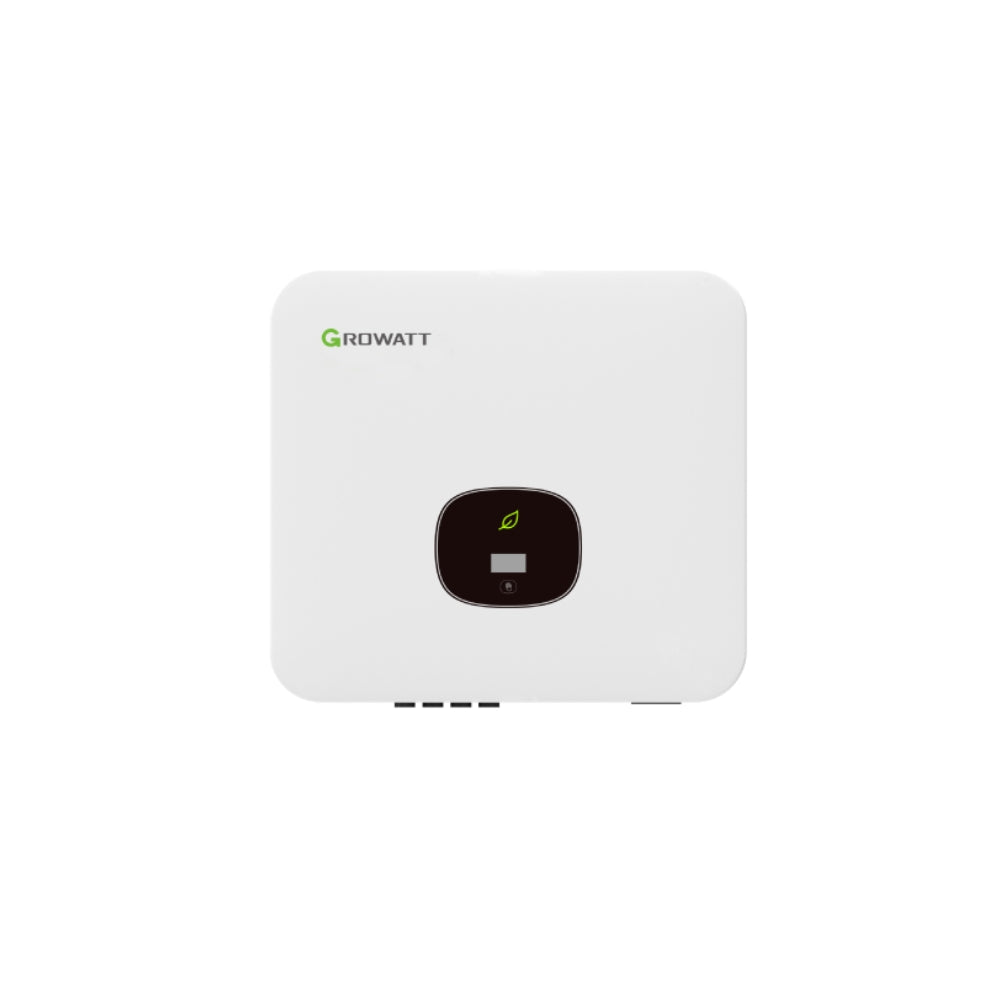

Growatt MIN X2 10 kW 1 Phase 3 MPPT Grid Connect (MIN 10000TL-X2 (AS4777-2 2020))

The Growatt MIN 10000TL-X2 is a 10kW single-phase on-grid inverter designed for residential solar systems. It features three Maximum Power Point Tracking (MPPT) channels, allowing for flexible panel configurations and optimal energy harvesting. With a maximum efficiency of 98.1%, it ensures high energy yield and reliable performance.

Key Features

• Power Output: 10kW AC

• MPPT Channels: 3

• Maximum Efficiency: 98.1%

• DC Input Voltage Range: 80V to 550V

• Start-up Voltage: 80V

• Maximum DC Input Power: 15,000W

• Maximum Input Current per MPPT: 24A

• Output Current: 45.5A

• IP Rating: IP66 (dustproof and waterproof)

• Cooling: Natural cooling (fanless)

• Dimensions: 425mm (H) × 392mm (W) × 180mm (D)

• Weight: Approximately 18.2kg

• Safety Features:

  • Arc Fault Circuit Interrupter (AFCI)

  • Type II Surge Protection Devices (SPDs) on both DC and AC sides

  • Built-in DC switch

  • Anti-islanding protection

• Communication Ports: RS485, USB

• Monitoring Options: ShineWiFi-X, Shine4G-X, ShineLan-X, ShineLink-X

• Warranty: 10 years
