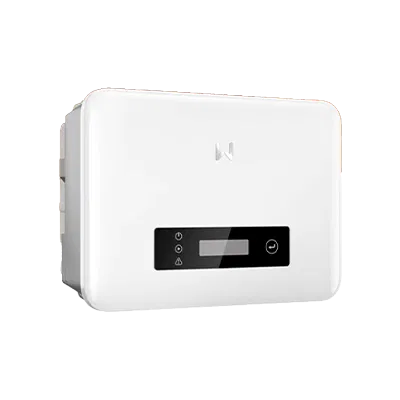

GW1500-XS-30

Brand	["Goodwe"]

Topology	transformerless
MPP max. voltage range input (V)	450.00
DC connector type	MC4
Max. input current DC (A) total	16.00
Max. short circuit current (A) total	25.00
Max. efficiency (%)	97.20
Interface 2	W-Lan
Max. short circuit current per MPPT (A)	25.0
Min. temperature ambient (°C)	-25
Max. input voltage DC (V)	600.00
Protection degree	IP66
Decibel	20
Display	with display
Surge protection AC	type 3
AC nominal power (kW)	1.50
Interface 1	RS485
MPP min. voltage range input (V)	40.00
Max. input current per MPPT (A).	16.0
Start input voltage (V)	50
Min. voltage range input (V)	40
Total number of string inputs	1
Number of independent MPPT (pcs)	1
European efficiency (%)	96.00
Integrated DC switch	yes
Integrated AC switch	no
Surge protection DC	type 3
Max. AC power (kVA)	1.50
Max. output current (A)	6.90
