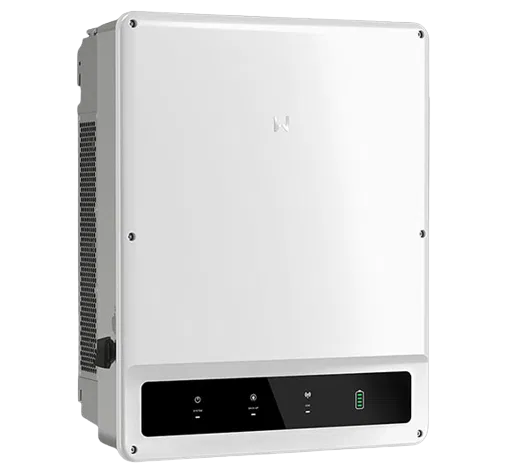

GW20K-ET

Brand	["GoodWe"]

Topology	transformerless
Max. generator power DC (kWp)	30.00
Max. input current DC (A) total	60.00
Max. short circuit current per MPPT (A)	38.0\/38.0
Interface 2	W-Lan
Min. voltage range input (V)	200
Protection degree	IP66
Number of independent MPPT (pcs)	2
Start input voltage (V)	200
MPP max. voltage range input (V)	850.00
Contact for self-consumption optimization (e.g. for heat pump)	1
Charging current (A)	50.00
Max. input current per MPPT (A).	30.0\/30.0
Surge protection AC	type 3
Min. temperature ambient (°C)	-35
Max. input voltage DC (V)	1000.00
Max. short circuit current (A) total	76.00
Interface 1	RS485
Total number of string inputs	4
Battery Connection	DC
European efficiency (%)	97.50
Peak shaving	yes
Decibel	45
Display	w/o display
Max. efficiency (%)	98.00
AC nominal power (kW)	20.00
Max. output current (A)	33.30
MPP min. voltage range input (V)	200.00
Integrated DC switch	yes
Max. AC power (kVA)	22.00
Surge protection DC	type 2
Backup system light	yes
Charging voltage (V)	200-800 V
