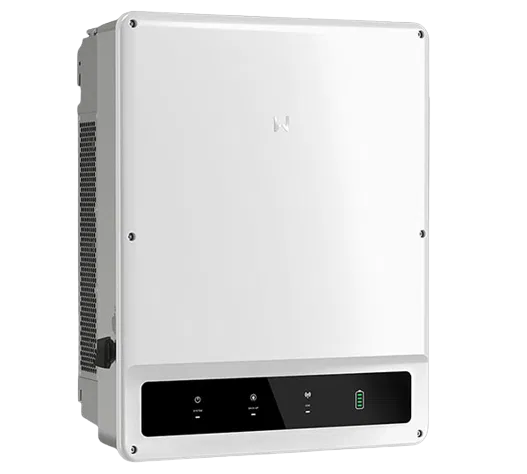

GW25K-ET

Brand	["GoodWe"]

Topology	transformerless
AC nominal power (kW)	25.00
Total number of string inputs	6
Interface 2	W-Lan
Min. voltage range input (V)	200
Protection degree	IP66
Start input voltage (V)	200
Max. generator power DC (kWp)	37.50
MPP max. voltage range input (V)	850.00
Contact for self-consumption optimization (e.g. for heat pump)	1
Number of independent MPPT (pcs)	3
Surge protection AC	type 3
Max. short circuit current per MPPT (A)	38.0\/38.0\/38.0
Min. temperature ambient (°C)	-35
Max. input voltage DC (V)	1000.00
Max. input current per MPPT (A).	30.0\/30.0\/30.0
Interface 1	RS485
Battery Connection	DC
European efficiency (%)	97.50
Peak shaving	yes
Decibel	45
Charging current (A)	100.00
Max. efficiency (%)	98.00
Max. short circuit current (A) total	114.00
MPP min. voltage range input (V)	200.00
Integrated DC switch	yes
Max. AC power (kVA)	27.50
Surge protection DC	type 2
Backup system light	yes
Max. input current DC (A) total	90.00
Charging voltage (V)	200-800 V
Max. output current (A)	41.70
