Description
- Art. no. 6660579
Description

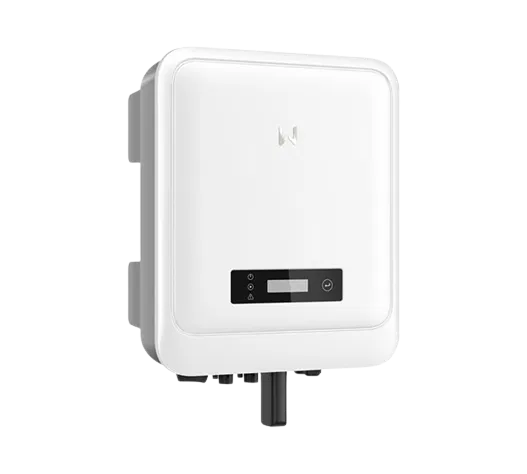

| Brand | ["GoodWe"] |
|---|
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. temperature ambient (°C) | -25 |
| Max. input voltage DC (V) | 600.00 |
| Max. output current (A) | 14.40 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Decibel | 25 |
| Max. generator power DC (kWp) | 4.50 |
| Total number of string inputs | 2 |
| Surge protection AC | type 3 |
| Max. AC power (kVA) | 3.30 |
| Max. input current DC (A) total | 32.00 |
| MPP min. voltage range input (V) | 40.00 |
| Rapid shutdown | no |
| Start input voltage (V) | 50 |
| Min. voltage range input (V) | 40 |
| MPP max. voltage range input (V) | 560.00 |
| AC nominal power (kW) | 3.00 |
| Integrated DC switch | yes |
| Max. efficiency (%) | 97.90 |
| European efficiency (%) | 97.00 |
| Surge protection DC | type 3 |
| Max. short circuit current (A) total | 46.00 |
| Max. short circuit current per MPPT (A) | 23.0\/23.0 |
| Max. input current per MPPT (A). | 16.0\/16.0 |
