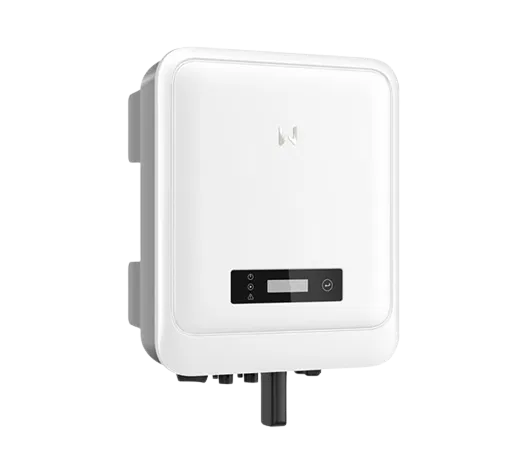

GW4200-DNS-30

Brand	["GoodWe"]

Topology	transformerless
DC connector type	MC4
European efficiency (%)	97.20
Min. temperature ambient (°C)	-25
Max. input voltage DC (V)	600.00
Protection degree	IP66
Number of independent MPPT (pcs)	2
Display	with display
Decibel	25
Max. AC power (kVA)	4.62
Total number of string inputs	2
Surge protection AC	type 3
String fuses	no
Max. input current DC (A) total	32.00
MPP min. voltage range input (V)	40.00
Rapid shutdown	no
Start input voltage (V)	50
Min. voltage range input (V)	40
MPP max. voltage range input (V)	560.00
Integrated DC switch	yes
Max. efficiency (%)	97.90
Max. generator power DC (kWp)	6.30
Max. output current (A)	20.10
Surge protection DC	type 3
Max. short circuit current (A) total	46.00
Max. short circuit current per MPPT (A)	23.0\/23.0
AC nominal power (kW)	4.20
Max. input current per MPPT (A).	16.0\/16.0
