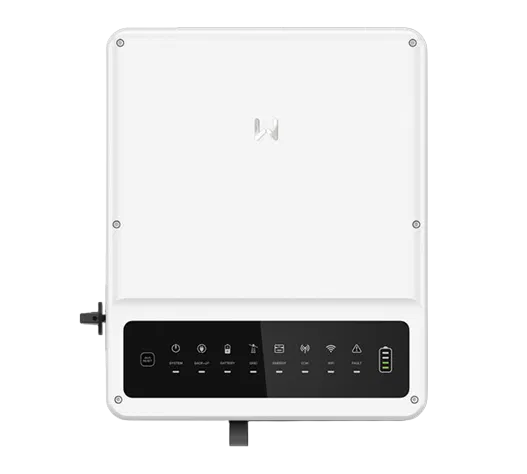

- hybrid inverter, 5kW, 2MPPT, 1ph, 230V AC, 50/60Hz
- Art. no. 6660583
| Topology |
transformerless |
| Charging current (A) |
25.00 |
| Max. short circuit current (A) total |
42.40 |
| Start input voltage (V) |
90 |
| MPP max. voltage range input (V) |
550.00 |
| Interface 2 |
W-Lan |
| Min. temperature ambient (°C) |
-25 |
| Protection degree |
IP65 |
| Number of independent MPPT (pcs) |
2 |
| Max. short circuit current per MPPT (A) |
21.2\/21.2 |
| Total number of string inputs |
2 |
| Max. input current DC (A) total |
32.00 |
| Interface 1 |
RS485 |
| Battery Connection |
DC |
| AC nominal power (kW) |
5.00 |
| Peak shaving |
yes |
| Display |
w/o display |
| Max. input voltage DC (V) |
580.00 |
| Max. efficiency (%) |
97.60 |
| Charging voltage (V) |
85-460 V |
| Offgrid usable |
yes |
| Max. output current (A) |
21.70 |
| Surge protection DC |
type 2 |
| Backup system light |
yes |
| Max. AC power (kVA) |
5.00 |
| Min. voltage range input (V) |
90 |
| European efficiency (%) |
97.00 |
| Max. generator power DC (kWp) |
7.50 |
| MPP min. voltage range input (V) |
100.00 |
| Max. input current per MPPT (A). |
16.0\/16.0 |
