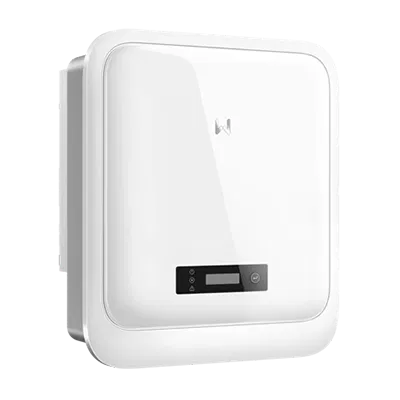

GW6000-MS-30

Brand	["Goodwe"]

Topology	transformerless
DC connector type	MC4
Max. input current DC (A) total	60.00
Max. efficiency (%)	97.80
Interface 1	W-Lan
European efficiency (%)	97.20
Min. temperature ambient (°C)	-25
Max. input voltage DC (V)	600.00
Protection degree	IP66
Interface 2	RS485
Display	with display
Max. input current per MPPT (A).	20.0\/20.0\/20.0
Number of independent MPPT (pcs)	3
Surge protection AC	type 3
Decibel	30
Max. AC power (kVA)	6.60
MPP min. voltage range input (V)	40.00
Max. short circuit current per MPPT (A)	25.0\/25.0\/25.0
Start input voltage (V)	50
Min. voltage range input (V)	40
MPP max. voltage range input (V)	560.00
Integrated DC switch	yes
Total number of string inputs	3
Max. short circuit current (A) total	75.00
Surge protection DC	type 3
Max. output current (A)	28.70
AC nominal power (kW)	6.00
