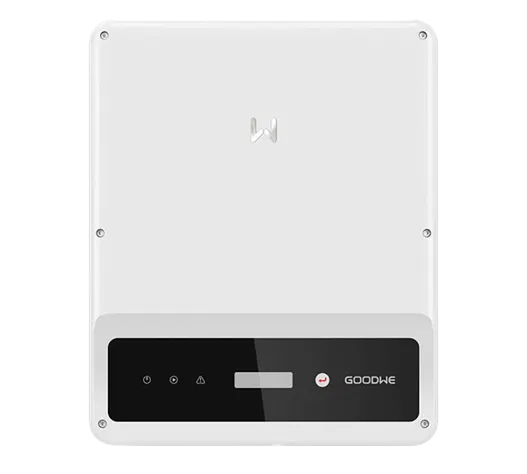

GW6000-SDT-20

Brand	["Goodwe"]

Topology	transformerless
Max. short circuit current per MPPT (A)	20.0\/20.0
DC connector type	MC4
Max. output current (A)	9.60
Protection degree	IP65
Min. voltage range input (V)	180
Number of independent MPPT (pcs)	2
MPP max. voltage range input (V)	850.00
Max. short circuit current (A) total	40.00
Max. input voltage DC (V)	620.00
Total number of string inputs	2
Surge protection AC	type 3
Max. generator power DC (kWp)	9.00
Max. input current DC (A) total	32.00
Interface 1	RS485
Max. AC power (kVA)	6.60
MPP min. voltage range input (V)	180.00
Start input voltage (V)	180
Max. efficiency (%)	98.20
Integrated DC switch	yes
Min. temperature ambient (°C)	-30
Surge protection DC	type 3
European efficiency (%)	97.60
AC nominal power (kW)	6.00
Decibel	34
Max. input current per MPPT (A).	16.0\/16.0
