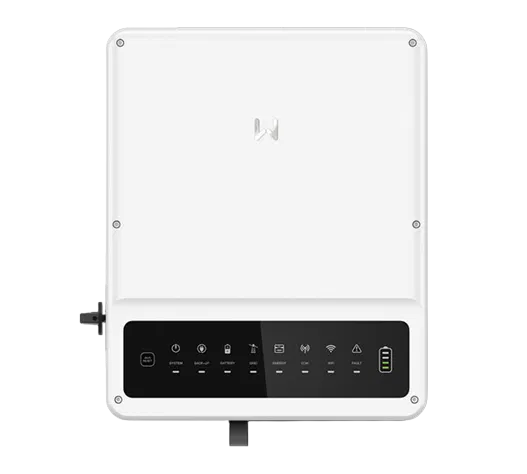

GW6000N-EH Plus Hybrid

Brand	["GoodWe"]

Topology	transformerless
Charging current (A)	25.00
Max. short circuit current (A) total	42.40
Start input voltage (V)	90
MPP max. voltage range input (V)	550.00
Interface 2	W-Lan
Min. temperature ambient (°C)	-25
Protection degree	IP65
Number of independent MPPT (pcs)	2
Max. short circuit current per MPPT (A)	21.2\/21.2
Total number of string inputs	2
Max. generator power DC (kWp)	9.00
Max. input current DC (A) total	32.00
Interface 1	RS485
Max. AC power (kVA)	6.00
Battery Connection	DC
Peak shaving	yes
Display	w/o display
Max. output current (A)	26.10
Max. input voltage DC (V)	580.00
Max. efficiency (%)	97.60
Backup system light	yes with supply
Offgrid usable	no
Surge protection DC	type 2
Min. voltage range input (V)	90
European efficiency (%)	97.00
Charging voltage (V)	85-460
AC nominal power (kW)	6.00
MPP min. voltage range input (V)	100.00
Max. input current per MPPT (A).	16.0\/16.0
