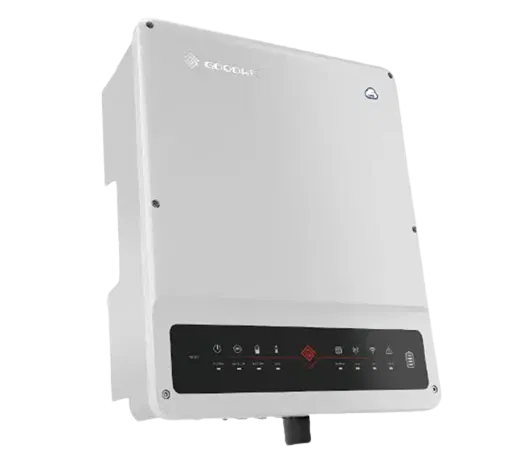

GW6KL-ET

Brand	["Goodwe"]

Topology	transformerless
Charging current (A)	25.00
Max. short circuit current per MPPT (A)	15.2\/15.2
Max. output current (A)	10.50
MPP max. voltage range input (V)	550.00
Interface 2	W-Lan
Protection degree	IP65
Max. input voltage DC (V)	600.00
European efficiency (%)	96.80
Min. voltage range input (V)	180
Number of independent MPPT (pcs)	2
Total number of string inputs	2
Min. temperature ambient (°C)	-35
Decibel	30
Charging voltage (V)	180-600
Interface 1	RS485
Max. AC power (kVA)	6.60
Battery Connection	DC
Max. input current per MPPT (A).	12.5\/12.5
Display	w/o display
Max. generator power DC (kWp)	7.98
Start input voltage (V)	180
Max. efficiency (%)	97.60
MPP min. voltage range input (V)	200.00
Max. input current DC (A) total	25.00
Max. short circuit current (A) total	30.40
AC nominal power (kW)	6.00
