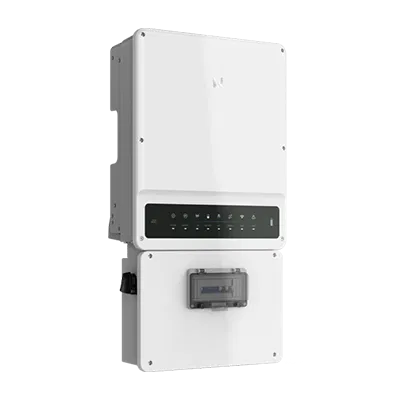

GW8.6K-EHB-AU-G11

Brand	["GoodWe"]

Topology	transformerless
Max. AC power (kVA)	8.60
Interface 1	W-Lan
MPP max. voltage range input (V)	550.00
Charging voltage (V)	80V-495 V
Protection degree	IP65
Max. input voltage DC (V)	600.00
Interface 2	RS485
Number of independent MPPT (pcs)	4
AC nominal power (kW)	8.60
Max. input current DC (A) total	64.00
Charging current (A)	50.00
Min. temperature ambient (°C)	-35
Start input voltage (V)	95
Surge protection AC	type 2
Total number of string inputs	4
Battery Connection	DC
Max. input current per MPPT (A).	16.0\/16.0\/16.0\/16.0
Display	w/o display
Max. output current (A)	37.40
MPP min. voltage range input (V)	80.00
Max. short circuit current (A) total	96.00
Max. efficiency (%)	97.60
Integrated DC switch	yes
Max. generator power DC (kWp)	17.20
Surge protection DC	type 2
Backup system light	yes
Integrated AC switch	yes
European efficiency (%)	97.00
Max. short circuit current per MPPT (A)	24.0\/24.0\/24.0\/24.0
