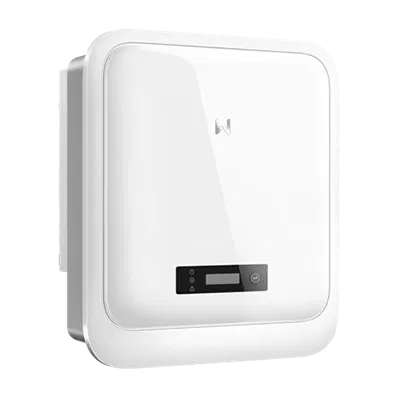

GW8500-MS-30

Brand	["Goodwe"]

Topology	transformerless
DC connector type	MC4
Max. input current DC (A) total	60.00
European efficiency (%)	97.30
Interface 1	W-Lan
Min. temperature ambient (°C)	-25
Max. input voltage DC (V)	600.00
Protection degree	IP66
Display	with display
Max. input current per MPPT (A).	20.0\/20.0\/20.0
Number of independent MPPT (pcs)	3
Surge protection AC	type 3
Decibel	30
MPP min. voltage range input (V)	40.00
Max. short circuit current per MPPT (A)	25.0\/25.0\/25.0
Start input voltage (V)	50
Max. AC power (kVA)	9.35
Min. voltage range input (V)	40
Max. output current (A)	40.70
MPP max. voltage range input (V)	560.00
Integrated DC switch	yes
Total number of string inputs	3
Max. efficiency (%)	97.90
AC nominal power (kW)	8.50
Max. short circuit current (A) total	75.00
Surge protection DC	type 3
