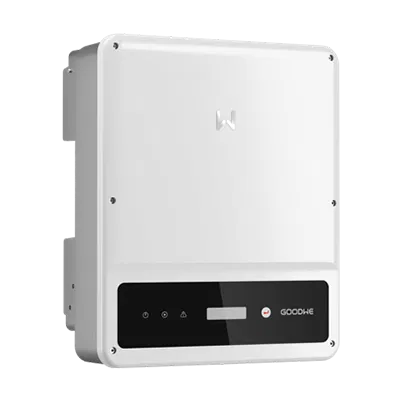

GW9.9KAU-DT

Brand	["GoodWe"]

Topology	transformerless
Max. AC power (kVA)	9.90
DC connector type	MC4
Max. input current DC (A) total	60.00
Max. short circuit current per MPPT (A)	37.5\/37.5
Interface 2	W-Lan
Max. output current (A)	14.40
Protection degree	IP66
Number of independent MPPT (pcs)	2
Max. input current per MPPT (A).	30.0\/30.0
Surge protection AC	type 3
Interface 1	RS485
Total number of string inputs	4
European efficiency (%)	97.50
MPP max. voltage range input (V)	950.00
Max. generator power DC (kWp)	15.00
Start input voltage (V)	180
Max. efficiency (%)	98.40
Integrated DC switch	yes
AC nominal power (kW)	9.90
Min. temperature ambient (°C)	-30
MPP min. voltage range input (V)	140.00
Max. input voltage DC (V)	1100.00
Surge protection DC	type 2
Max. short circuit current (A) total	75.00
Min. voltage range input (V)	140
