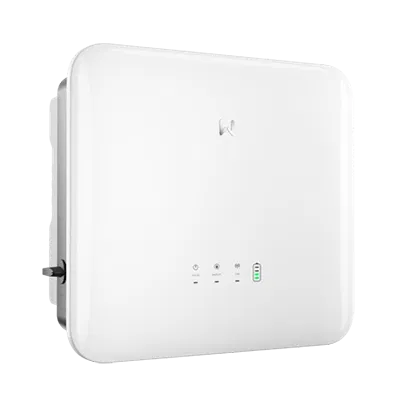

GW9900-ET-20 G2

Brand	["Goodwe"]

Max. output current (A)	14.50
Topology	transformerless
MPP min. voltage range input (V)	120.00
Charging voltage (V)	150-720
Interface 1	W-Lan
Interface 2	Bluetooth
Charging current (A)	40.00
AC nominal power (kW)	9.99
Protection degree	IP66
Start input voltage (V)	150
MPP max. voltage range input (V)	850.00
Max. short circuit current per MPPT (A)	24.0
Max. short circuit current (A) total	72.00
Number of independent MPPT (pcs)	3
Min. temperature ambient (°C)	-35
Max. input voltage DC (V)	1000.00
Surge protection AC	type 2
Battery Connection	DC
European efficiency (%)	97.50
Max. input current per MPPT (A).	16.0
Max. AC power (kVA)	9.99
Display	w/o display
Max. generator power DC (kWp)	16.00
Max. efficiency (%)	98.20
Integrated DC switch	yes
Total number of string inputs	3
Surge protection DC	type 2
Backup system light	yes
Arc Fault Circuit Interrupter	yes
Max. input current DC (A) total	48.00
