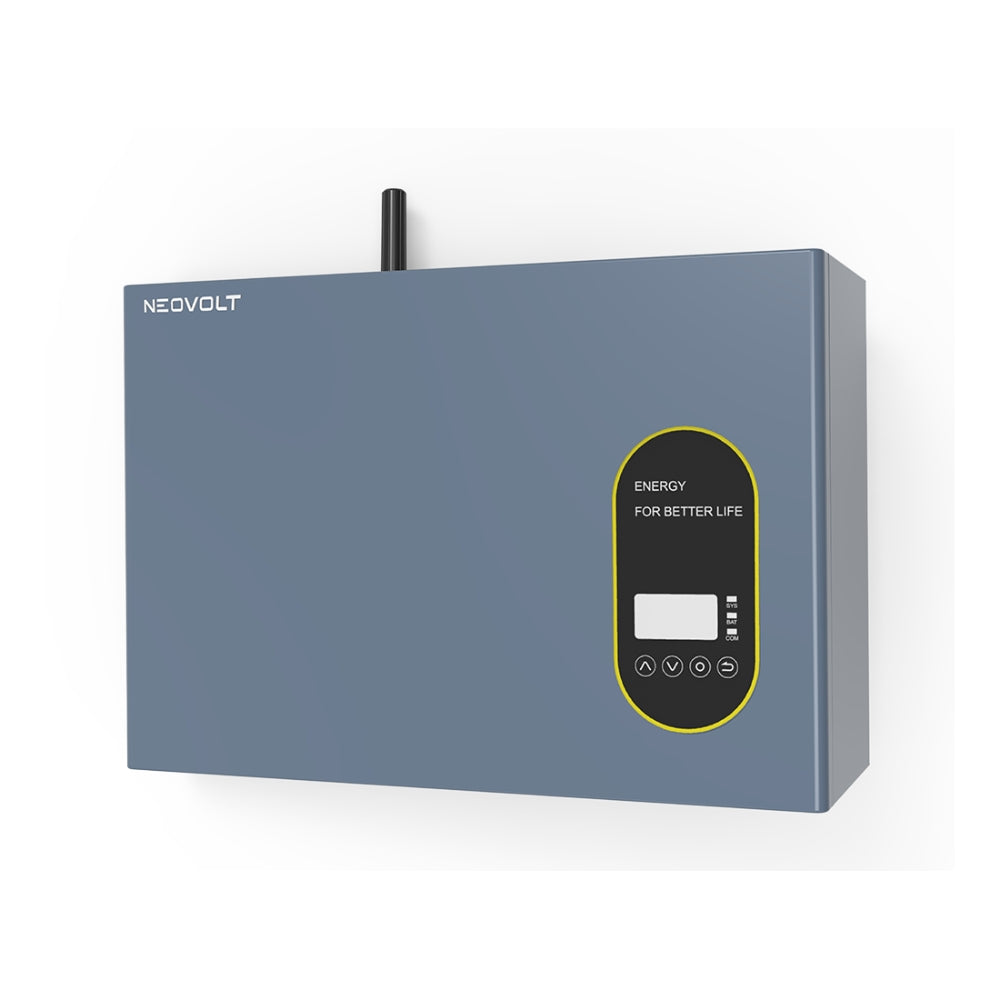

The Neovolt 10.1 kWh Battery (BW-BAT-10.1P) and Neovolt BW 5 kW 1 Phase 2 MPPT DC Coupled Hybrid Inverter (BW-INV-SPH5K) form an integrated energy storage system designed to optimize solar energy usage in residential applications.
Key Features:
-
Battery Capacity: 10.1 kWh (9.6 kWh usable)
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
-
Battery Voltage: 96V
-
Battery Cycle Life: Up to 8,000 cycles
-
Inverter Output Power: 5 kW
-
Inverter Surge Power: 10 kW
-
MPPT Channels: 2
-
Efficiency:
-
Maximum Efficiency: 97.3%
-
Round Trip Efficiency: 90%
-
-
Operating Temperature Range:
-
Battery: Charge: 0°C to 50°C, Discharge: -10°C to 50°C
-
Inverter: -20°C to 60°C
-
-
Protection Rating: IP65
-
Warranty: 5 years product warranty, 10-year performance warranty
