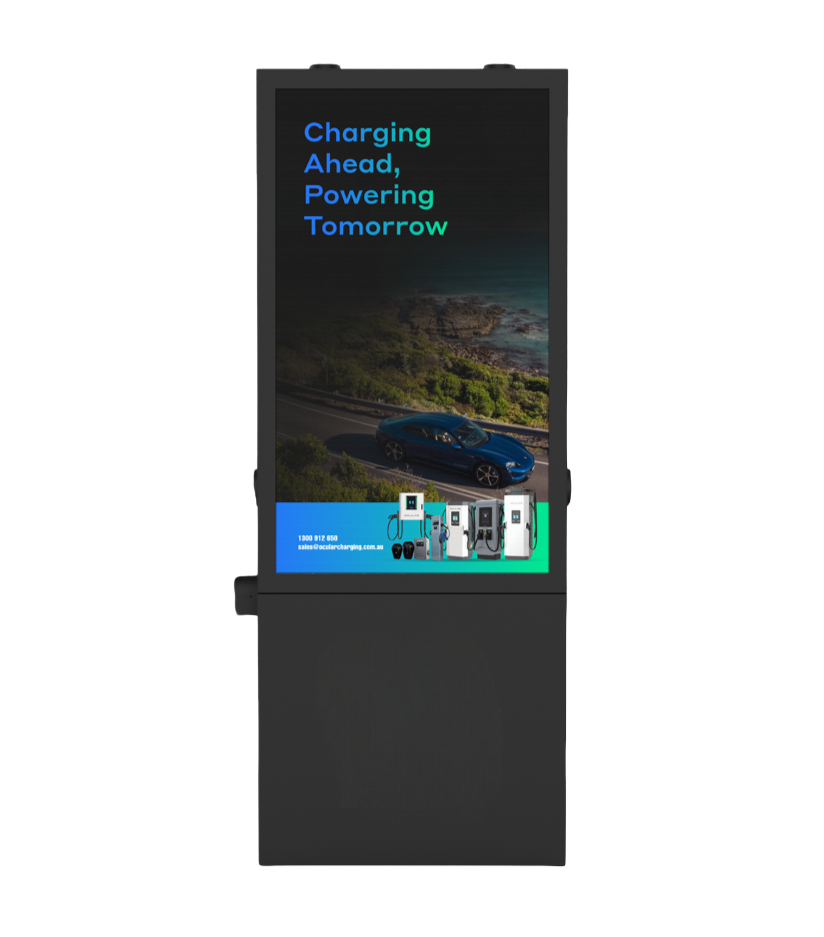

Ocular IQ Advertising Kiosk
The Ocular IQ Advertising Kiosk transforms advertising into a high-impact, valuable experience. The premium display, equipped with a built-in media player, supports sound-enabled videos and images, providing valuable advertising space without the need for additional hardware. This smart design not only saves you costs and space but also enhances your marketing potential.
Technical Specifications:
| Number of Charging Ports | : | 2 |
| Power Output | : | 22kW (3-Phase) per port. Can be configured as 7kW Single Phase |
| EV Charging Connector | : | 2 x Type-2 Socket |
| Input and Output Voltage | : | 400V ± 20% (If configured as single phase: 230V ± 20%) |
| Input and Output Current | : | 32A max per phase per port |
| Recommended Circuit Breaker | : | 40A type A RCBO per port |
| Frequency (Hz) | : | 50/60Hz |
| Display | : | 55" LCD display screen |
| RFID Reader | : | ISO14443 Type A cards compatible |
| Resolution | : | 1920 x 1080 |
| Brightness | : | 2500 nits |
| Charger Control Method | : | Mobile app, Physical button, RFID |
| Internal RCD | : | 2 x 63A Type-B RCD |
| Electrical Protection | : | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature |
| MCB | : | 2 x 50A MCB |
| SPD | : | 2 x 40kA SPD |
| OCPP | : | 1.6J and 2.0.1 (Firmware upgrade required) |
| Internet Connection | : | Ethernet, Wi-Fi, 4G |
| Additional Communication Type | : | Modbus (TCP/IP) |
| Energy Meter | : | 2 x MID meter |
| Load Control | : | Compatible with Ocular Load Controller or OCPP smart profiles |
| Standby Power Consumption (Screen on) | : | MAX 320 W |
| Operating Temperature | : | -30°C ℃ to +50℃°C |
| Storage Temperature | : | -40°C℃ to +70℃°C |
| Working Humidity | : | 5% - 95% relative humidity, non-condensing |
| IP Performance | : | IP55, IK10 |
| Mounting | : | Floor mounted |
| Dimension (H x W x D, mm) | : | 2000 * 895 * 220 mm |
| Net Weight | : | 137 kg |
| Certification | : | CE, IEC /EN 61851-1, IEC/EN 61851-21-2, IEC 62196-2, EN 61000-3. RCM |
| Warranty | : | 2 Years (Extended warranties available) |
Important Product Information
Access the PDF guide for complete installation and product information.
