Description

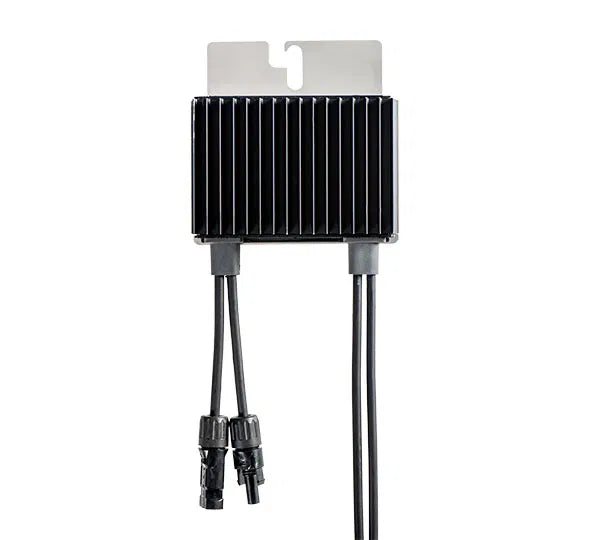

Thanks to the unique system concept with the high-performance power optimisers, SolarEdge enables the ideal energy use of your PV system. The high flexibility in arrangement and interconnection is reflected in an outstanding efficiency of 99.5 %. In addition, the SolarEdge optimisers minimise any losses due to module mismatching. The integrated functions such as Safe-DC and monitoring of the DC connectors ensure safety throughout the entire system. This SolarEdge optimiser is specially designed for use with SolarEdge inverters (SE16k and larger) in commercial and large- field installations and can be used with up to two PV modules connected in series. It is ideal for modules with landscape orientation.
Product advantages:
- Cable In: 0.16/ 0.16m, Out: 2.2/ 2.2m; MC4
- Art. no. 6642547
- Manufacturer No. P950-4RM4MBY
- Outstanding efficiency (99.5 %)
- Monitored DC plug connections
- Safe-DC function
- Compatible with bifacial PV modules
Product features:
- Rated input power: 950 W
- Short circuit current Isc: 14.1 A
- MPP max. voltage range input: 105 V
- MPP min. voltage range input: 12.5 V
- Max. input voltage DC: 125 V
- Interface: Powerline
- DC connector type: MC4
- Length of cable output plus: 220 cm
- Length of cable input: 16 cm
- Weight: 1.06 kg
- Warranty: 25 years
Description
| Brand | ["SolarEdge"] |
|---|
| DC connector type | MC4 |
|---|---|
| Max. input voltage DC (V) | 125.00 |
| Length of cable output plus (cm) | 220.00 |
| MPP min. voltage range input (V) | 12.50 |
| Rated input power (W) | 950 |
| Short circuit current Isc (A) | 14.10 |
| Protection degree | IP68 |
| Length of cable output minus (cm) | 220.00 |
| MPP max. voltage range input (V) | 105.00 |
| Amount Connectable modules | 2 |
