Description

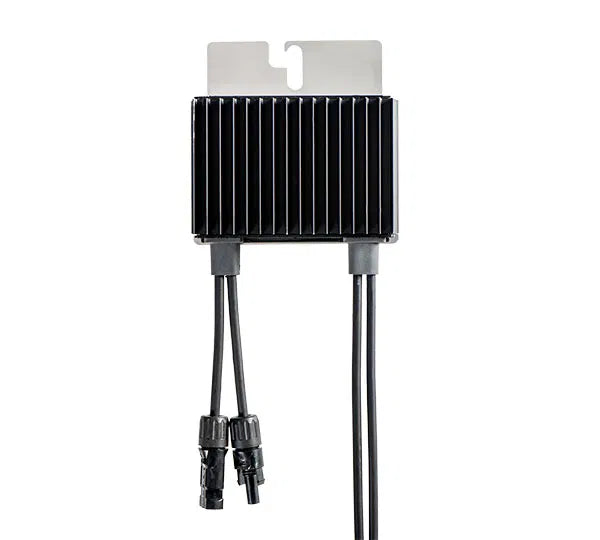

Product information "P950-4RMXMBY" This optimizer can be used up to 14.5 A in accordance with special approval from SolarEdge. Please use SolarEdge Designer to check the system design. Please note that the system and string connection specifications may vary depending on the inverter and module type. The installation technician is always responsible for checking and documenting the system design. Thanks to the unique system concept with the high-performance power optimisers, SolarEdge enables the ideal energy use of your PV system. The high flexibility in arrangement and interconnection is reflected in an outstanding efficiency of 99.5 %. In addition, the SolarEdge optimisers minimise any losses due to module mismatching. The integrated functions such as Safe-DC and monitoring of the DC connectors ensure safety throughout the entire system. This SolarEdge optimiser is specially designed for use with SolarEdge inverters (SE16k and larger) in commercial and large- field installations and can be used with up to two PV modules connected in series. It is ideal for modules with landscape orientation.
Product advantages:
- Module Optimizer for SE inverter
- Art. no. 6642548
- Manufacturer No. P950-4RMXMBY
- Outstanding efficiency (99.5 %)
- Monitored DC plug connections
- Safe-DC function
- Compatible with bifacial PV modules
Product features:
- Rated input power: 950 W
- Short circuit current Isc: 14.5 A
- MPP max. voltage range input: 105 V
- MPP min. voltage range input: 12.5 V
- Max. input voltage DC: 125 V
- Interface: Powerline
- DC connector type: MC4
- Length of cable output: 220 cm
- Length of cable input: 130 cm
- Weight: 1.064 kg
- Warranty: 25 years
Description
| Brand | ["SolarEdge"] |
|---|
| DC connector type | MC4 |
|---|---|
| Max. input voltage DC (V) | 125.00 |
| Length of cable output plus (cm) | 220.00 |
| Short circuit current Isc (A) | 14.50 |
| MPP min. voltage range input (V) | 12.50 |
| Rated input power (W) | 950 |
| Protection degree | IP68 |
| Length of cable output minus (cm) | 220.00 |
| MPP max. voltage range input (V) | 105.00 |
| Amount Connectable modules | 2 |
