Description

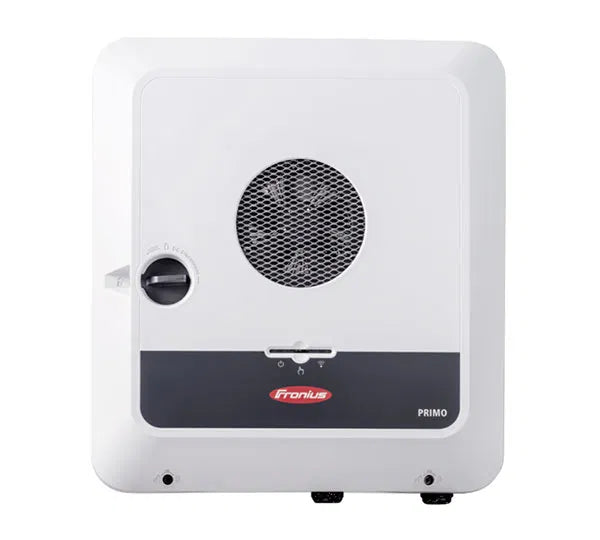

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.
Product advantages:
- Storage connection can be activated at any time
- Emergency power via Fronius PV-Point always active
- PV inverter, 2 MPPT, 1-phase, battery optional
- Art. no. 6644709
- Manufacturer No. 4,210,141
Product features:
- AC power: 3.6 kW
- Number of MPPT: 2
- DC input current: MPPT 1 - 22.0 A, MPPT 2 - 12.0 A
- AC connection: 1-phase
- Communication: WLAN, 2 x Ethernet
- Interfaces: 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Dimensions: 530 x 474 x 165 mm (H x W x D)
- Weight: 15.4 kg
Fronius inverters come with a standard 2-year warranty.
The warranty period can be extended to up to 10 years free of charge by registering at www.solarweb.com!
Description
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 36,0\/19,0 |
| Max. input current per MPPT (A). | 22,0\/12,0 |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -40 |
| Max. generator power DC (kWp) | 5.52 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Decibel | 42 |
| Max. output current (A) | 16.70 |
| MPP max. voltage range input (V) | 600.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. short circuit current (A) total | 55.00 |
| Max. efficiency (%) | 97.60 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| AC nominal power (kW) | 3.68 |
| Contact ripple control receiver | yes |
| Max. AC power (kVA) | 3.68 |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| European efficiency (%) | 97.00 |
| MPP min. voltage range input (V) | 65.00 |
| Charging voltage (V) | 150V-455V |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
