Description

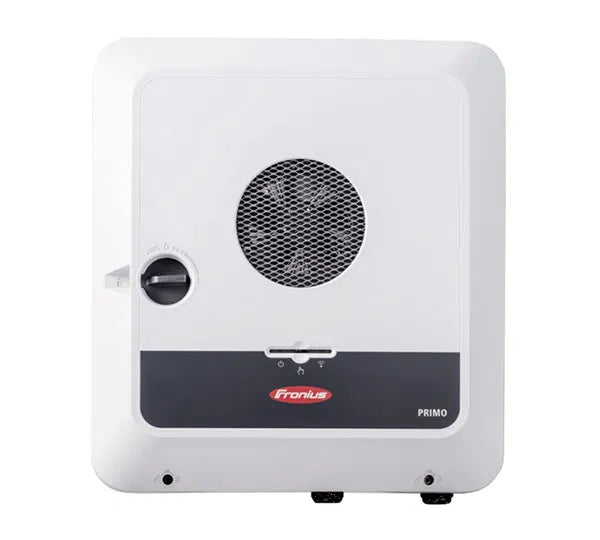

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.
Product advantages:
- PV inverter, 2 MPPT, 1-phase, battery optional
- Art. no. 6644713
- Manufacturer No. 4,210,145
- Storage connection can be activated at any time
- Emergency power via Fronius PV-Point always active
- Backup power possible with Enwitec switchover device (activation required)
Product features:
- AC power: 6.0* kW
- Number of MPPT: 2
- DC input current: MPPT 1 - 22.0 A, MPPT 2 - 12.0 A
- AC connection: 1-phase
- Communication: WLAN, 2 x Ethernet
- Interfaces: 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Dimensions: 530 x 474 x 165 mm (H x W x D)
- Weight: 15.4 kg
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 36,0\/19,0 |
| Max. input current per MPPT (A). | 22,0\/12,0 |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -40 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Max. generator power DC (kWp) | 9.00 |
| Decibel | 42 |
| Max. output current (A) | 27.30 |
| European efficiency (%) | 97.10 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. AC power (kVA) | 6.00 |
| Total number of string inputs | 4 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. short circuit current (A) total | 55.00 |
| Max. efficiency (%) | 97.60 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 480.00 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| MPP min. voltage range input (V) | 65.00 |
| Charging voltage (V) | 150V-455V |
| AC nominal power (kW) | 6.00 |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
