Description

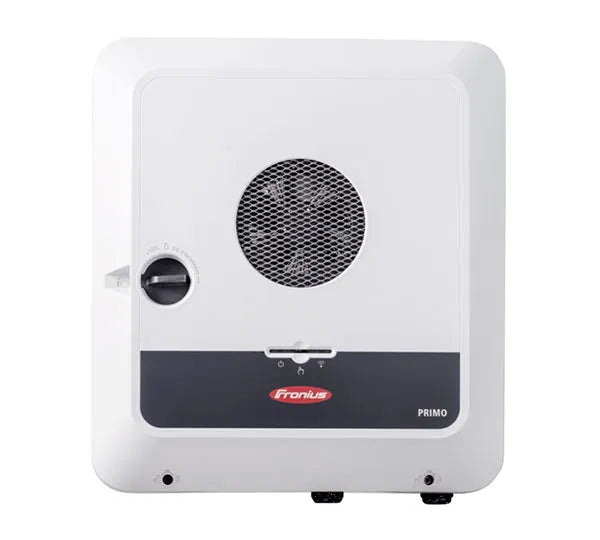

hybrid inverter, 8kW, 2MPPT, 1ph, 220V, 230V AC, 50/60Hz, w/out display, w/DC switch, WLAN/LAN/Webserver, hybrid function can be purchased additionally 5 + 5 Years Fronius Warranty Plus (After Free Registration)
- Art. no. 6656140
- Manufacturer No. 4,210,146
Specification
| Brand | ["Fronius"] |
|---|
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Max. generator power DC (kWp) | 12.00 |
| Max. input voltage DC (V) | 600.00 |
| Interface 2 | RS485 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current (A) total | 77.25 |
| Arc Fault Circuit Interrupter | no |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. input current per MPPT (A). | 22,0 |
| European efficiency (%) | 96.90 |
| Charging voltage (V) | 150 - 455 |
| MPP max. voltage range input (V) | 480.00 |
| Max. input current DC (A) total | 44.00 |
| AC nominal power (kW) | 8.00 |
| MPP min. voltage range input (V) | 65.00 |
| Max. short circuit current per MPPT (A) | 41,25\/36,0 |
| Charging current (A) | 22.00 |
| Max. efficiency (%) | 97.30 |
| Max. AC power (kVA) | 8.00 |
