Description

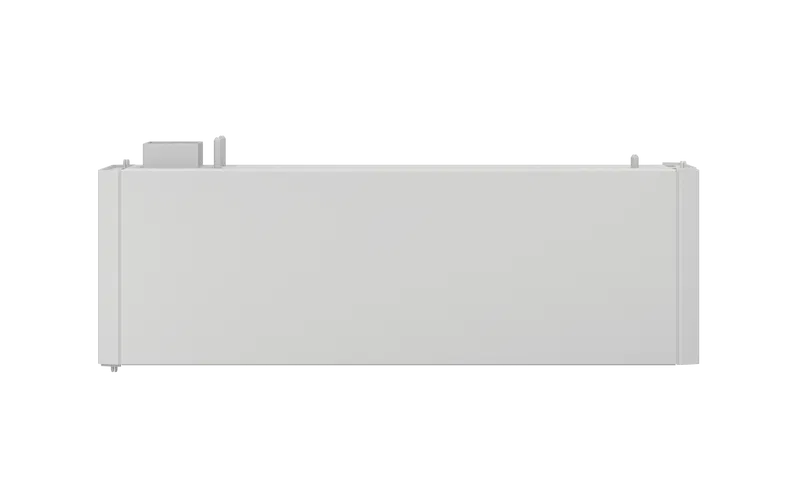

RESERVA BATTERY MODULE 3.15 kWh AUS-NZ
Ultra-flat and powerful - that's the Fronius Reserva high-voltage storage system. Thanks to its high cell voltage, it can be used with high charging power on GEN24 hybrid devices with as few as 2 storage modules. In the proven stacked design, just under 15.8 kWh of usable capacity can be realised with 5 elements. For larger storage requirements, up to 4 systems can be connected in parallel. And with an installation depth of just 176 mm, it even fits behind doors and in tight technical rooms.
Product benefits:
- Flexible installation due to small installation depth
- Certified battery safety in accordance with VDE 2510-50
Product features:
- Battery capacity (usable): 3.15 kWh
- Time window extension: in clarification
- DC nominal voltage: 102.4 V
- Cell chemistry: LFP
- Protection class: IP65
- Dimensions: 250 x 780 x 176 mm (HxWxD)
- Weight: 33.5 kg
- HV Storage Module, 3.15 kWh Usable
- Art. no. 6661574
- Manufacturer No. 4,240,374
Description
| Brand | ["Fronius"] |
|---|
| Protection degree | IP65 |
|---|---|
| Cell chemistry | LFP |
| Min. temperature ambient (°C) | -20 |
| Nominal Capacity (Ah) | 31.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 102.40 |
| Max. output current discharging (A) | 32.00 |
| Usable capacity (kWh) | 3.15 |
| Max. output current charging (A) | 32.00 |
