Description

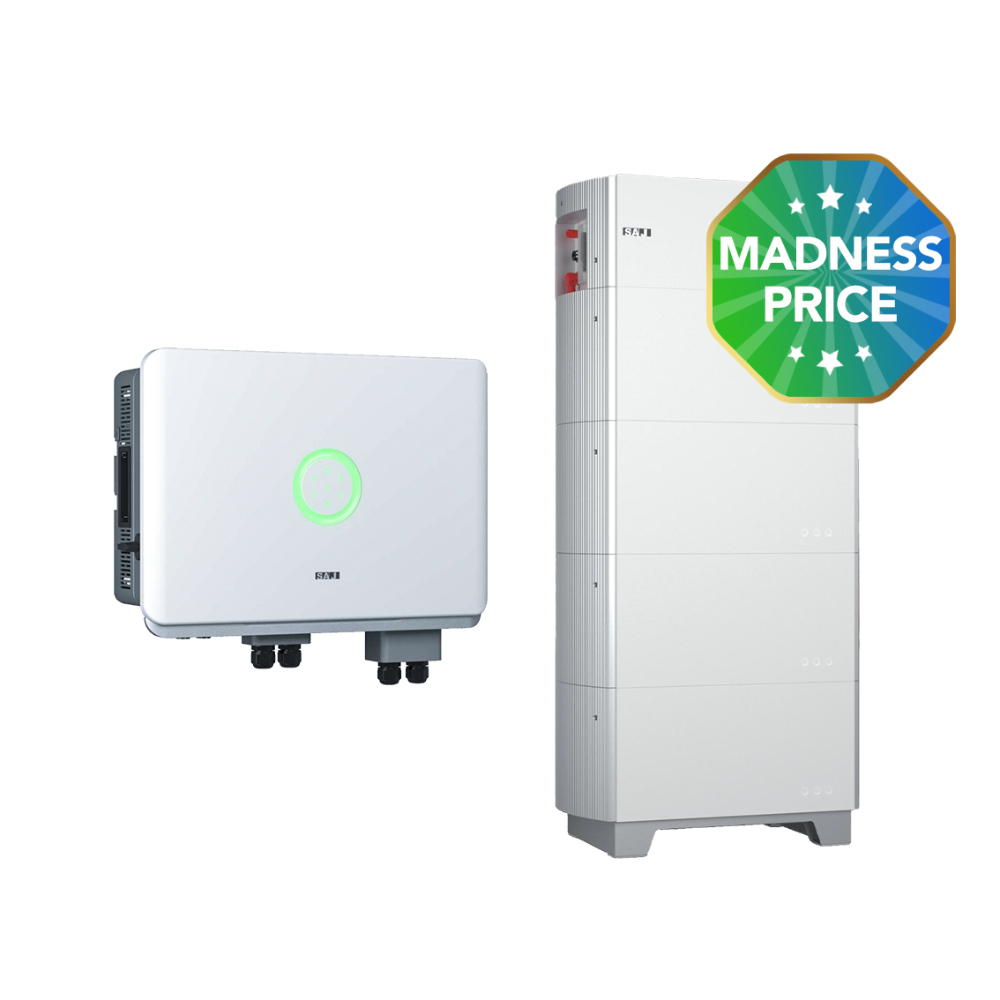

The SAJ 5kW-3P Hybrid Inverter is a high-performance, three-phase inverter designed for residential and commercial solar energy systems. It efficiently converts DC electricity generated by solar panels into AC electricity for household or business use and manages the charging and discharging of the battery storage system.
Key Features:
-
Rated AC Output Power: 5,000 VA
-
Maximum AC Output Power: 5,500 VA
-
AC Output Voltage: Three-phase 400V
-
AC Output Frequency: 50/60 Hz
-
Maximum DC Input Voltage: 1,000 V
-
Nominal DC Input Voltage: 380 V
-
Maximum DC Input Current: 16.5 A
-
MPPT Quantity: 2
-
Maximum Efficiency: 98%
-
European Efficiency: 97.6%
-
Operating Temperature Range: -40°C to +60°C
-
Protection Rating: IP65 (suitable for both indoor and outdoor installations)
-
Communication Interfaces: RS485, Wi-Fi (optional), GPRS (optional)
-
Mounting Options: Wall-mounted
-
Warranty: Typically 5 years
This inverter is compatible with various high-voltage battery storage systems, including the SAJ B2 series.
