Description

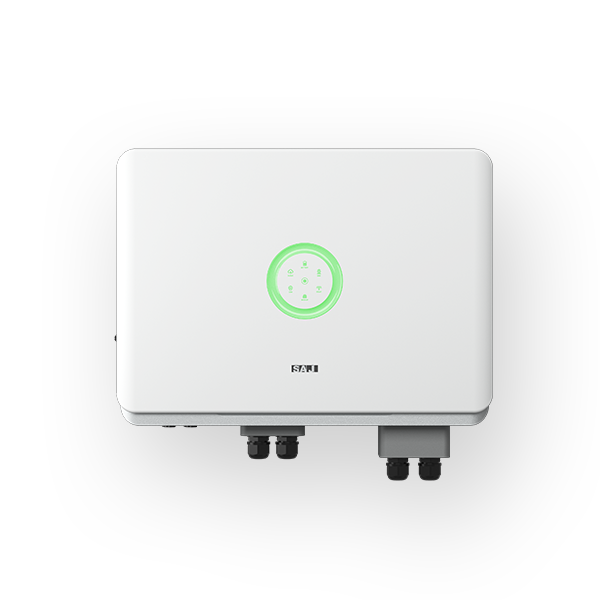

The SAJ H2-10K-S3-A is a high-capacity 10kW single-phase hybrid inverter designed for modern solar-plus-storage systems. Featuring 3 MPPTs, it ensures maximum energy yield from multi-angle rooftops. It supports high-voltage batteries, includes inbuilt backup functionality for uninterrupted power during outages, and comes with an integrated smart energy meter for real-time monitoring and export control.
With built-in WiFi, DCI (DC isolator) for safety, and intelligent energy management via the SAJ app, this inverter is perfect for residential and light commercial applications demanding efficiency, reliability, and energy independence.
š§ Key Features:
-
10kW single-phase output ā Powers larger homes or light commercial setups
-
Hybrid-ready for high-voltage batteries ā Future-proof energy storage integration
-
3 MPPTs ā Optimal energy harvesting across multiple panel orientations
-
Inbuilt backup ā Ensures power during grid failures
-
Integrated smart energy meter ā Tracks usage, export, and import in real-time
-
Built-in WiFi ā Remote monitoring with SAJ Home App
-
DCI + IP65 rating ā Safe, weatherproof, and installer-friendly
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 9.99 |
| Max. DC-Input Capacity | 15000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Meter | w/ Meter |
| Use Application | Residential |
| Type | Hybrid HV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | H2-10K-S3-A (AS4777-2 2020) |
| Weight (kg) | 26.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 445.00 |
| Dimension (L*W*H mm) | 539 * 223 * 430 |
| Pallet Dimension (L*W*H mm) | 1300 * 750 * 2150 |
