Description

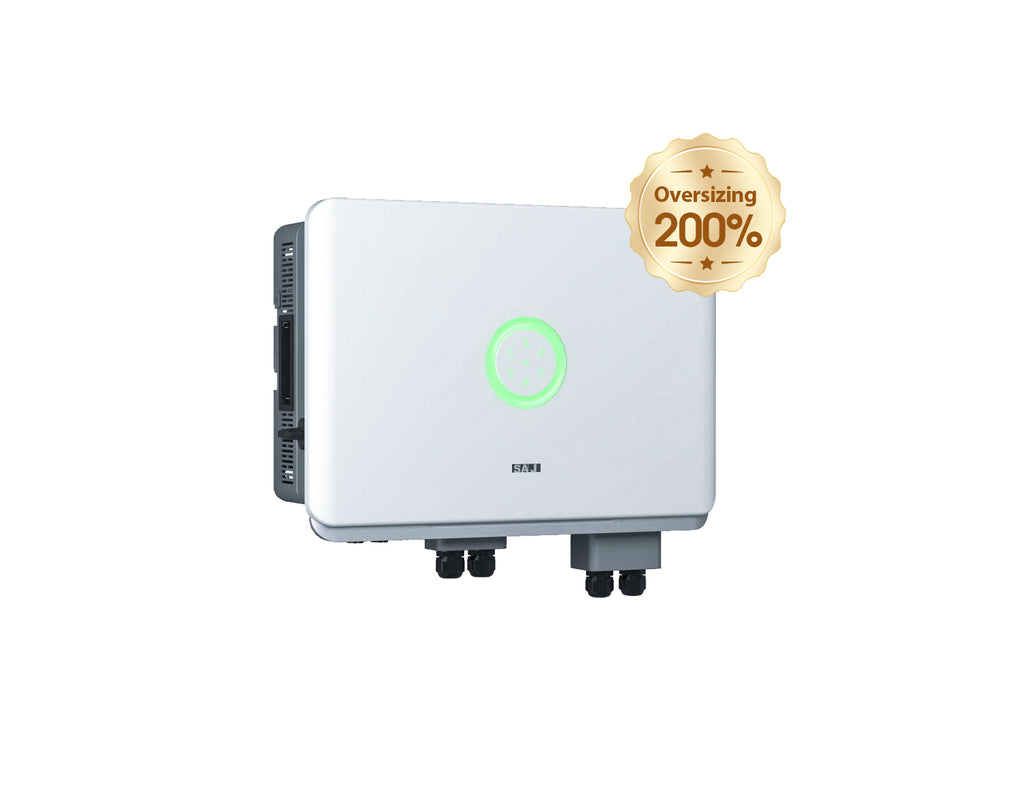

The SAJ H2-5K-S3 is a versatile 5.0kW hybrid high-voltage inverter designed for residential solar systems with integrated battery storage. With 3 MPPTs, it maximizes solar energy production even from multi-directional panel layouts. This advanced inverter supports high-voltage battery systems, features built-in backup to power essential loads during outages, and includes a smart energy meter for real-time monitoring and export control.Equipped with WiFi connectivity, a DC isolator (DCI), and an IP65-rated enclosure, the H2-5K-S3 is engineered for safe, efficient, and intelligent energy management in modern homes.
Key Features:
-
5.0kW single-phase AC output – Suitable for medium-sized homes
-
Hybrid-compatible with high-voltage batteries – Future-ready energy storage integration
-
3 MPPTs – Maximum solar yield from complex rooftops
-
Built-in backup function – Ensures continuous power during outages
-
Smart energy meter included – Enables consumption tracking & export limitation
-
WiFi-enabled monitoring – Manage via SAJ Home App
-
DCI & IP65 protection – Safe and weatherproof
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 10000 |
| MPPT | |
| DC Switch | Yes |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential |
| Type | Hybrid HV |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | H2-5K-S3 (AS4777-2 2020) |
| Weight (kg) | 26.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 445.00 |
| Dimension (L*W*H mm) | 549 * 223 * 430 |
| Pallet Dimension (L*W*H mm) | 1300 * 750 * 2150 |
| Product Warranty (Years) | 10 |
