Description

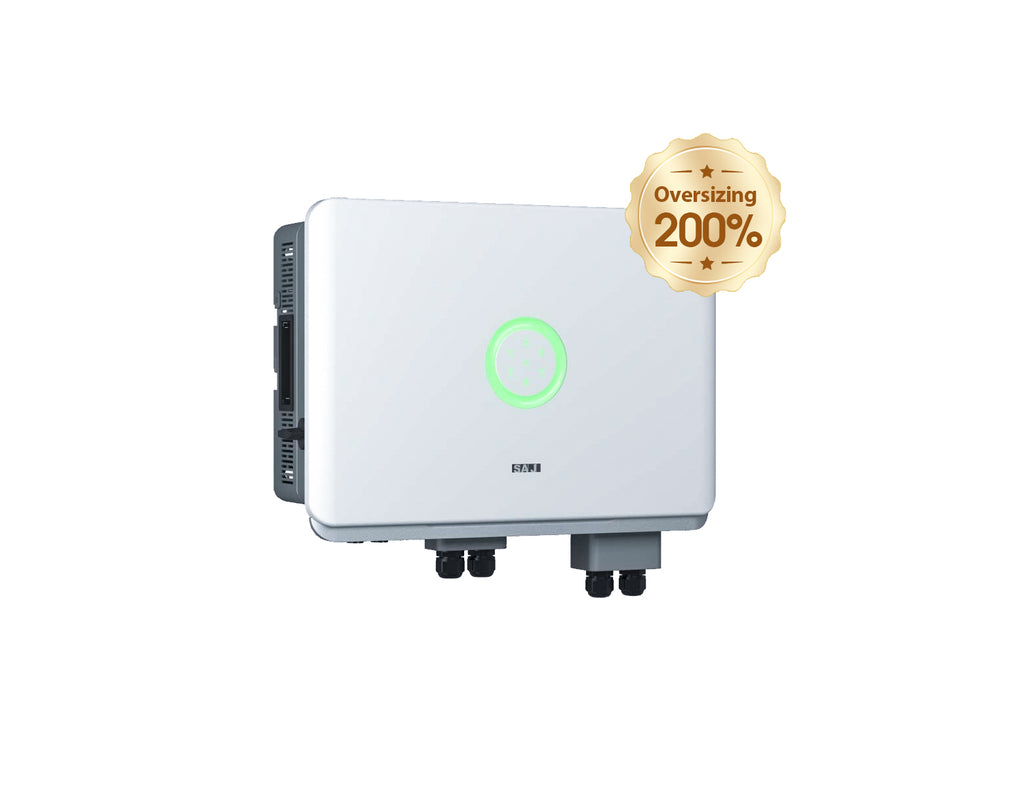

The SAJ H2-5K-T2 is a high-performance 5.0kW three-phase hybrid inverter designed for residential and small commercial solar+storage systems. With support for high-voltage batteries, dual MPPTs, and Wi-Fi connectivity, this inverter offers efficient energy management, inbuilt backup capability, and real-time monitoring with the included energy meter.The integrated DC isolator (DCI) and IP65-rated design make it a safe, reliable, and weatherproof solution for dynamic energy needs, enabling solar self-consumption, export control, and backup power during outages.
Key Features:
-
5.0kW 3-phase hybrid inverter – Ideal for homes and small businesses
-
Supports high-voltage batteries – Seamless solar + storage integration
-
2 MPPTs – Optimized energy harvesting from multiple orientations
-
Wi-Fi connectivity – Remote system monitoring via SAJ Cloud
-
Inbuilt backup function – Keeps essential loads running during power cuts
-
Built-in DCI (DC isolator) – Ensures safety and compliance
-
Integrated energy meter – Enables precise monitoring and export limitation
-
IP65 rated – Indoor/outdoor weather resistance
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 5 |
| Max. DC-Input Capacity | 10000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | Hybrid HV |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | H2-5K-T2 (AS4777-2 2020) |
| Weight (kg) | 25.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 413.60 |
| Dimension (L*W*H mm) | 550 * 207 * 433 |
| Pallet Dimension (L*W*H mm) | 1250 * 750 * 1940 |
| Product Warranty (Years) | 10 |
