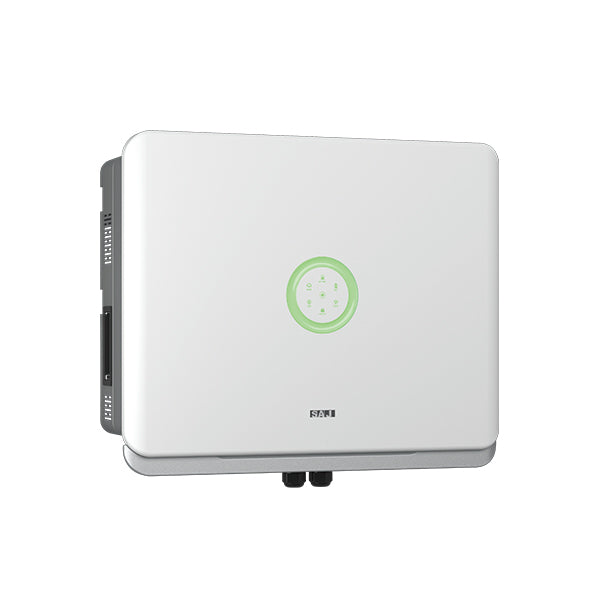

SAJ Hybrid HV 8.0kW 3 Phase Inverter (H2-8K-T2) – With WiFi, DCI, Backup & Meter
Maximize energy efficiency and ensure uninterrupted power supply with the advanced SAJ Hybrid HV 8.0kW 3-Phase Solar Inverter.
Key Features:
-
High Output: 8.0kW capacity, perfect for residential, commercial, or small industrial applications.
-
3 Phase Support: Delivers stable and balanced power for three-phase systems.
-
Dual MPPT (2 MPPTs): Optimized energy harvest with two independent Maximum Power Point Trackers.
-
Built-in WiFi: Monitor performance in real-time via the SAJ mobile app or web portal.
-
Integrated DCI (DC Isolator): Ensures safety and reduces the need for external components.
-
Inbuilt Backup Function: Seamless switch to backup power during grid outages – no downtime.
-
Built-in Energy Meter: Tracks power generation, usage, and grid export with precision.
-
Smart Hybrid Functionality: Manages solar, battery, and grid input intelligently for maximum savings.
-
Battery Compatibility: Works with high-voltage lithium battery storage systems.
What’s Included:
-
SAJ H2-8K-T2 Inverter
-
Built-in DC Isolator
-
Integrated Energy Meter
-
WiFi Module
-
User Manual & Installation Kit
Why Choose SAJ H2-8K-T2?
-
High conversion efficiency
-
Quiet and fan-less operation
-
IP65 rated – suitable for outdoor installation
-
5-year standard warranty (extendable)
Applications:
-
Rooftop Solar Systems
-
Hybrid Solar + Battery Setups
-
Commercial Buildings
-
Smart Homes and Villas
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | H2-8K-T2 |
| Max Output Power | 8000W |
| Phases | 3 Phase |
| MPPT Trackers | 2 |
| Backup Support | Yes |
| WiFi Monitoring | Yes |
| DC Isolator (DCI) | Included |
| Integrated Meter | Included |
| Protection Rating | IP65 |
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 8 |
| Max. DC-Input Capacity | 12000 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/ Meter |
| Use Application | Residential |
| Type | Hybrid HV |
| Phase | Three Phase |
| IP Rating | 65 |
| CEC Model | H2-8K-T2 (AS4777-2 2020) |
| Weight (kg) | 25.00 |
| Qty per Pallet | 12 |
| Pallet Weight (kg) | 413.60 |
| Dimension (L*W*H mm) | 550 * 207 * 433 |
| Pallet Dimension (L*W*H mm) | 1250 * 750 * 1940 |
| Product Warranty (Years) | 10 |
