Description

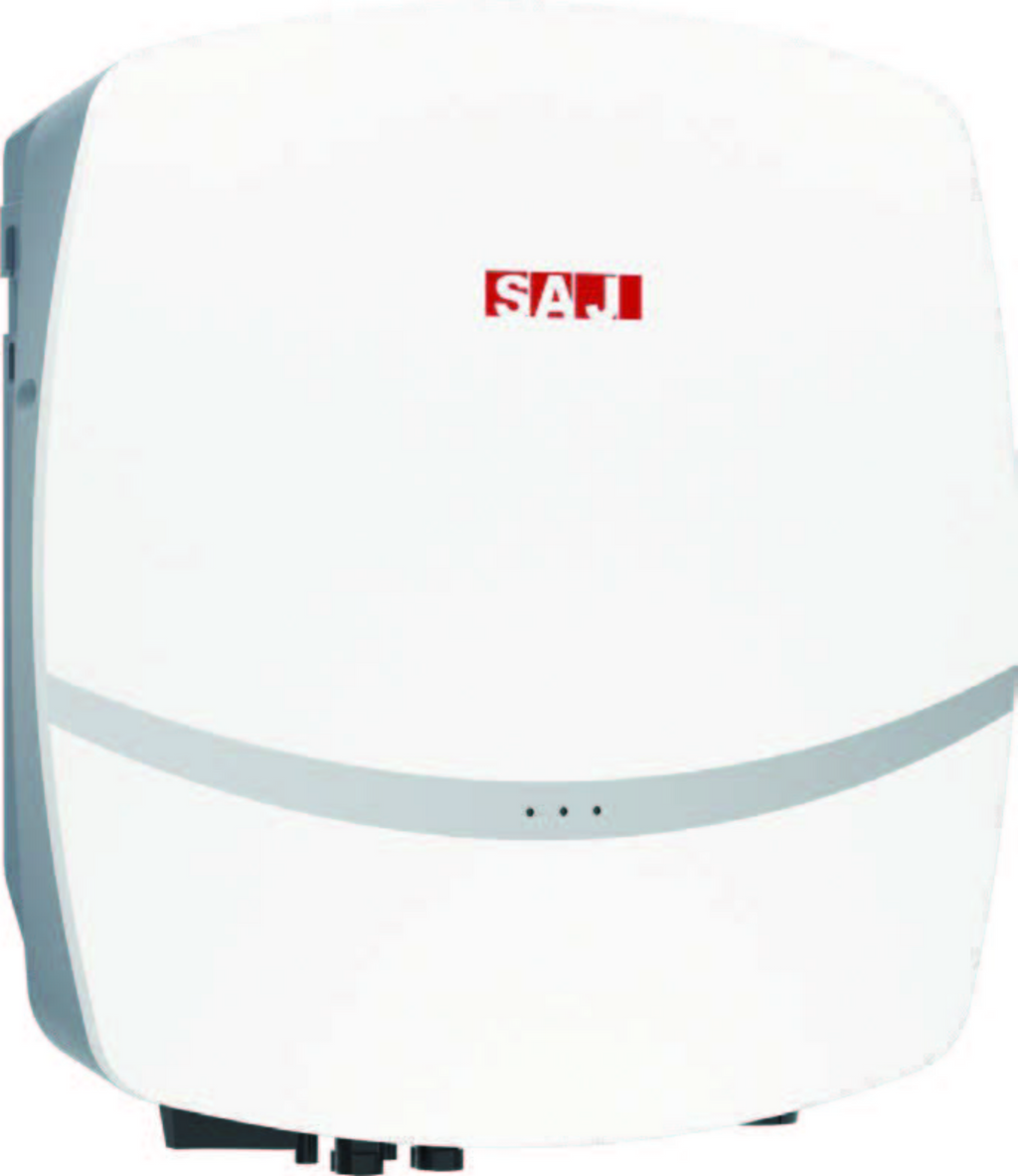

The SAJ R5 3kW String Inverter is a reliable and efficient single-phase solar inverter designed for residential rooftop solar systems. With 2 MPPTs for flexible system design, built-in Wi-Fi for smart monitoring, and a compact form factor, this inverter delivers high performance, easy installation, and intelligent control in a cost-effective package.
Key Features:
-
3kW AC Output Power: Perfect for small homes and individual solar installations.
-
Single Phase Output: Compatible with standard residential electrical systems.
-
2 MPPT Inputs: Optimizes energy yield from panels with different orientations or shading conditions.
-
Integrated Wi-Fi Monitoring: Real-time performance tracking through the SAJ Smart app and web portal.
-
High Efficiency (up to 97.8%): Converts more solar energy into usable electricity with minimal loss.
-
Compact & Lightweight Design: Easy wall-mounting and space-saving installation.
-
IP65 Rated: Weather-resistant for reliable outdoor or indoor operation.
-
Safety Protections: Includes anti-islanding, surge protection, and temperature control.
Description
| Brand | ["Saj"] |
|---|---|
| Rating (kW) | 3 |
| Max. DC-Input Capacity | 4500 |
| MPPT | |
| Display Screen | Yes |
| DC Switch | Yes |
| Built-in Battery) | No |
| WiFi | w/ wifi |
| Meter | w/o Meter |
| Use Application | Residential |
| Type | String |
| Phase | Single Phase |
| IP Rating | 65 |
| CEC Model | R5-3K-S2-15 (AS4777-2 2020) |
| Weight (kg) | 7.50 |
| Dimension (L*W*H mm) | 289 * 142 * 302 |
| Product Warranty (Years) | 10 |
